Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommodityPhysicalExercise
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
The parameters for defining how the physically-settled commodity option can be exercised and how it is settled.

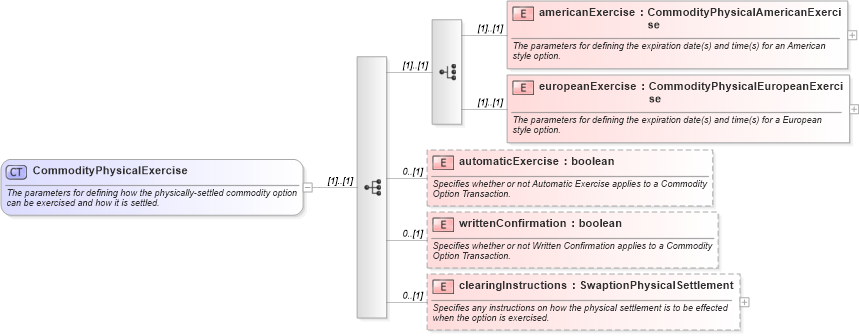

Collapse XSD Schema Diagram:
Drilldown into clearingInstructions in schema fpml-com-5-10_xsd Drilldown into writtenConfirmation in schema fpml-com-5-10_xsd Drilldown into automaticExercise in schema fpml-com-5-10_xsd Drilldown into europeanExercise in schema fpml-com-5-10_xsd Drilldown into americanExercise in schema fpml-com-5-10_xsdXSD Diagram of CommodityPhysicalExercise in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommodityPhysicalExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining how the physically-settled commodity option can be exercised and how it is settled.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice>
            <xsd:element name="americanExercise" type="CommodityPhysicalAmericanExercise">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The parameters for defining the expiration date(s) and time(s) for an American style option.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="europeanExercise" type="CommodityPhysicalEuropeanExercise">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The parameters for defining the expiration date(s) and time(s) for a European style option.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="automaticExercise" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies whether or not Automatic Exercise applies to a Commodity Option Transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="writtenConfirmation" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies whether or not Written Confirmation applies to a Commodity Option Transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clearingInstructions" type="SwaptionPhysicalSettlement" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies any instructions on how the physical settlement is to be effected when the option is exercised.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
americanExercise nsA:americanExercise (1) (1)
europeanExercise nsA:europeanExercise (1) (1)
automaticExercise nsA:automaticExercise 0 (1)
writtenConfirmation nsA:writtenConfirmation 0 (1)
clearingInstructions nsA:clearingInstructions 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:physicalExercise, nsA:physicalExercise
