Definition Type: Element
Name: commoditySwap
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:CommoditySwap
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
Defines a commodity swap product.

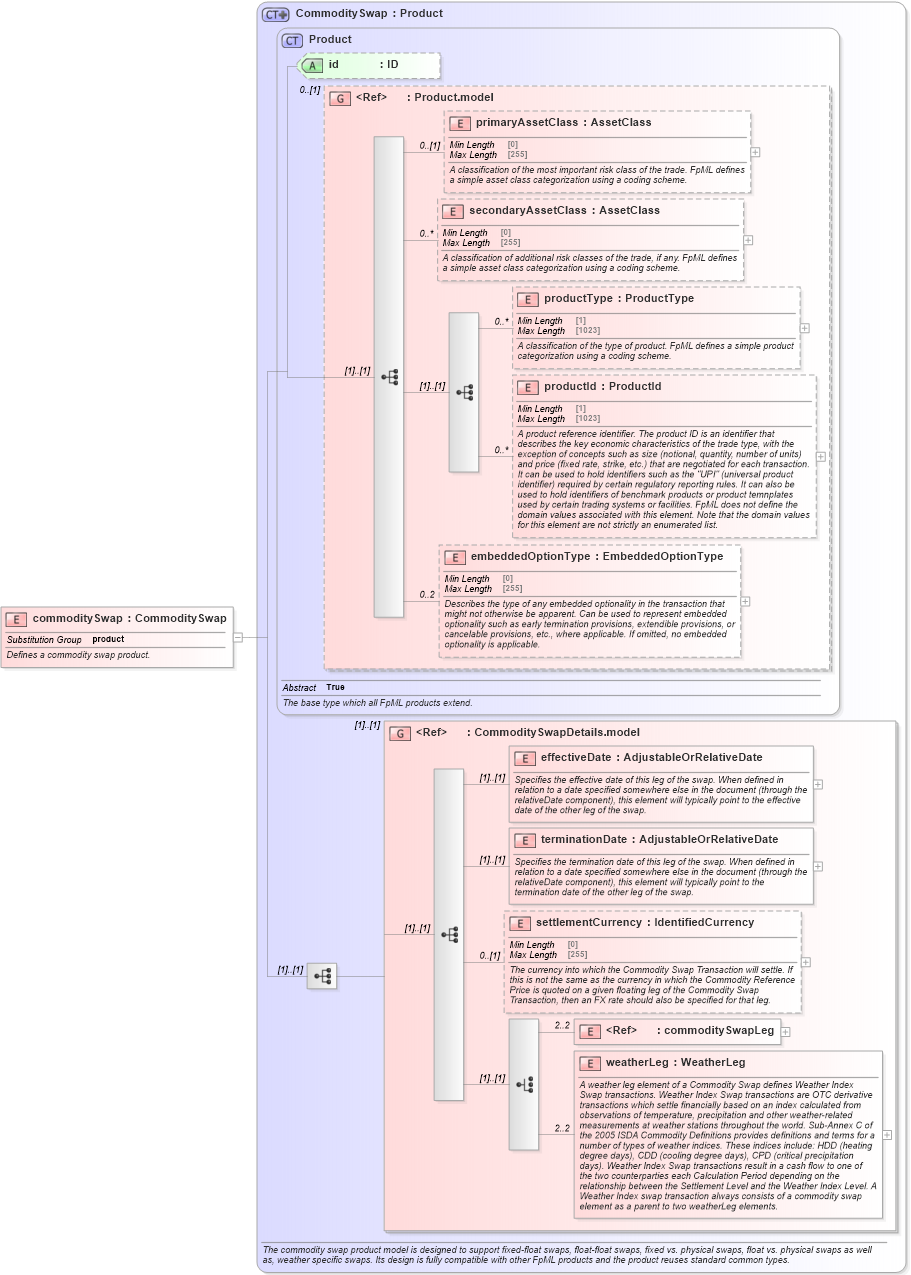

Collapse XSD Schema Diagram:
Drilldown into weatherLeg in schema fpml-com-5-10_xsd3 Drilldown into commoditySwapLeg in schema fpml-com-5-10_xsd3 Drilldown into settlementCurrency in schema fpml-com-5-10_xsd3 Drilldown into terminationDate in schema fpml-com-5-10_xsd3 Drilldown into effectiveDate in schema fpml-com-5-10_xsd3 Drilldown into CommoditySwapDetails.model in schema fpml-com-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into CommoditySwap in schema fpml-com-5-10_xsd3XSD Diagram of commoditySwap in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commoditySwap" type="CommoditySwap" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a commodity swap product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
effectiveDate nsF:effectiveDate (1) (1)
terminationDate nsF:terminationDate (1) (1)
settlementCurrency nsF:settlementCurrency 0 (1)
commoditySwapLeg nsF:commoditySwapLeg 2 2
weatherLeg nsF:weatherLeg 2 2
<xs:group> nsF:CommoditySwapDetails.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:product
