Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: CommoditySwaption
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Product
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
Commodity Swaption.

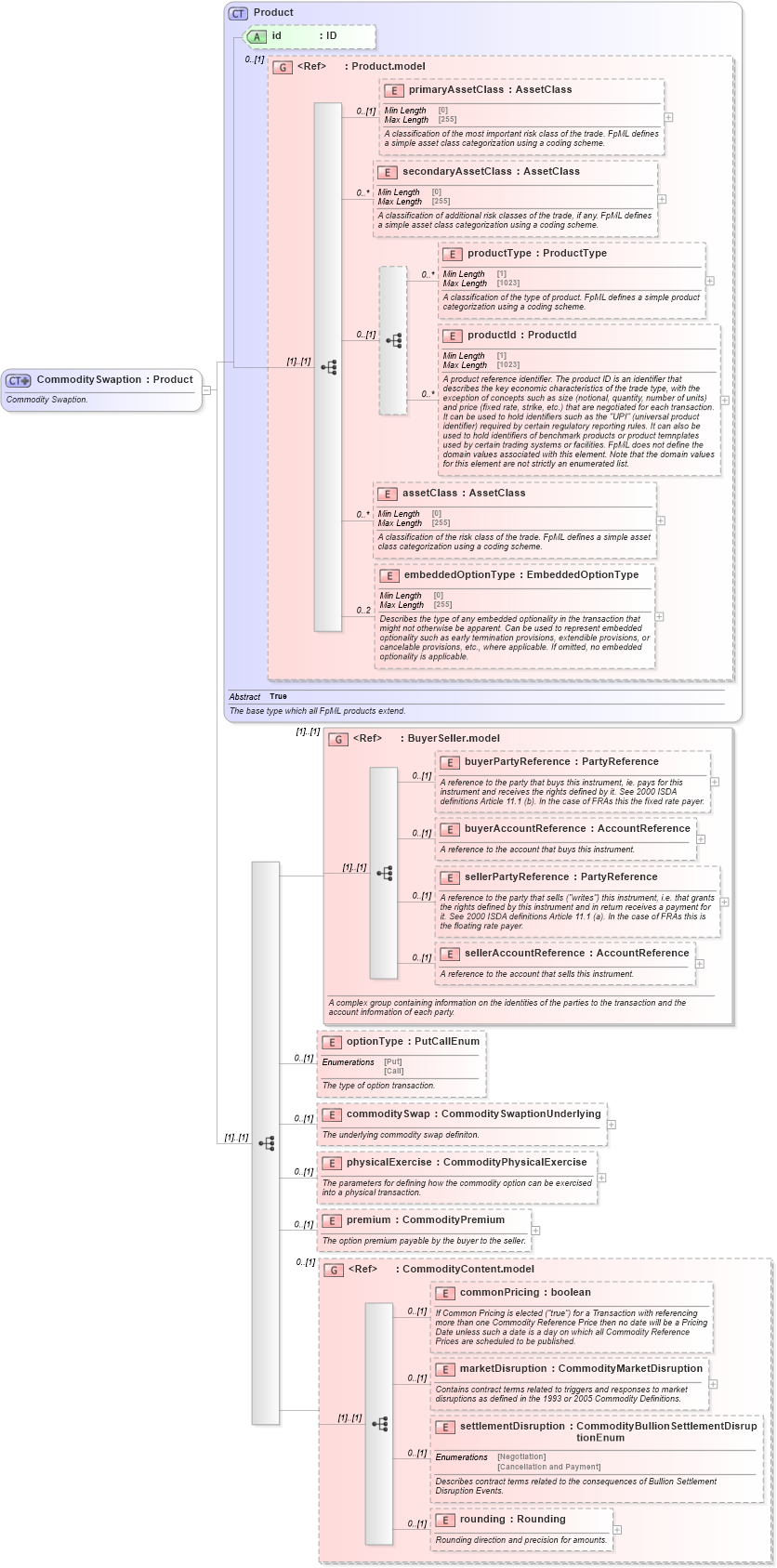

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-10_xsd2 Drilldown into settlementDisruption in schema fpml-com-5-10_xsd2 Drilldown into marketDisruption in schema fpml-com-5-10_xsd2 Drilldown into commonPricing in schema fpml-com-5-10_xsd2 Drilldown into CommodityContent.model in schema fpml-com-5-10_xsd2 Drilldown into premium in schema fpml-com-5-10_xsd2 Drilldown into physicalExercise in schema fpml-com-5-10_xsd2 Drilldown into commoditySwap in schema fpml-com-5-10_xsd2 Drilldown into optionType in schema fpml-com-5-10_xsd2 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd4 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd4 Drilldown into assetClass in schema fpml-shared-5-10_xsd4 Drilldown into productId in schema fpml-shared-5-10_xsd4 Drilldown into productType in schema fpml-shared-5-10_xsd4 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd4 Drilldown into Product.model in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Product in schema fpml-shared-5-10_xsd4XSD Diagram of CommoditySwaption in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="CommoditySwaption">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Commodity Swaption.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:group ref="BuyerSeller.model">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A complex group containing information on the identities of the parties to the transaction and the account information of each party.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:element name="optionType" type="PutCallEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The type of option transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="commoditySwap" type="CommoditySwaptionUnderlying" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The underlying commodity swap definiton.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="physicalExercise" type="CommodityPhysicalExercise" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The parameters for defining how the commodity option can be exercised into a physical transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="premium" type="CommodityPremium" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The option premium payable by the buyer to the seller.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="CommodityContent.model" minOccurs="0">
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsE:primaryAssetClass 0 (1)
secondaryAssetClass nsE:secondaryAssetClass 0 unbounded
productType nsE:productType 0 unbounded
productId nsE:productId 0 unbounded
assetClass nsE:assetClass 0 unbounded
embeddedOptionType nsE:embeddedOptionType 0 2
buyerPartyReference nsE:buyerPartyReference 0 (1)
buyerAccountReference nsE:buyerAccountReference 0 (1)
sellerPartyReference nsE:sellerPartyReference 0 (1)
sellerAccountReference nsE:sellerAccountReference 0 (1)
optionType nsE:optionType 0 (1)
commoditySwap nsE:commoditySwap 0 (1)
physicalExercise nsE:physicalExercise 0 (1)
premium nsE:premium 0 (1)
commonPricing nsE:commonPricing 0 (1)
marketDisruption nsE:marketDisruption 0 (1)
settlementDisruption nsE:settlementDisruption 0 (1)
rounding nsE:rounding 0 (1)
<xs:group> nsE:BuyerSeller.model (1) (1)
<xs:group> nsE:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:commoditySwaption
