Definition Type: Group
Name: Correlation.model
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-msg-5-10.xsd
Documentation:
A model group defining the elements used for process correlation. The correlation ID is used to link followup corrections and retractions to the original request, and to help identify which replies link to which requests. The parent correlation ID is used to keep track of the parent process.

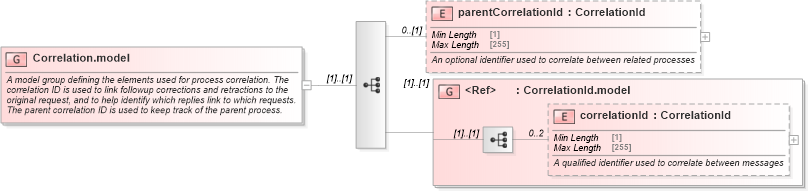

Collapse XSD Schema Diagram:
Drilldown into correlationId in schema fpml-msg-5-10_xsd4 Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd4 Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd4XSD Diagram of Correlation.model in schema fpml-msg-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="Correlation.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A model group defining the elements used for process correlation. The correlation ID is used to link followup corrections and retractions to the original request, and to help identify which replies link to which requests. The parent correlation ID is used to keep track of the parent process.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="parentCorrelationId" type="CorrelationId" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An optional identifier used to correlate between related processes</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="CorrelationId.model" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
parentCorrelationId nsF:parentCorrelationId 0 (1)
correlationId nsF:correlationId 0 2
<xs:group> nsF:CorrelationId.model (1) (1)
