Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: correlationSwap
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CorrelationSwap
Containing Schema: fpml-correlation-swaps-5-10.xsd
Abstract
Documentation:
Specifies the structure of a correlation swap.

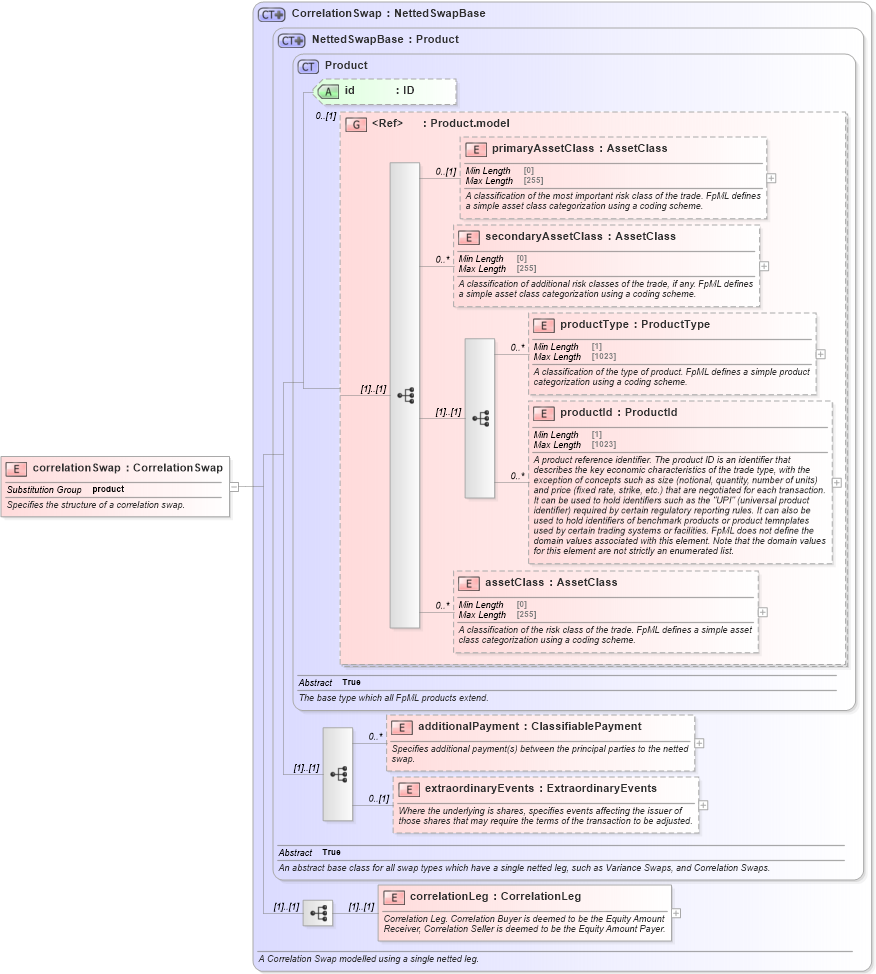

Collapse XSD Schema Diagram:
Drilldown into correlationLeg in schema fpml-correlation-swaps-5-10_xsd Drilldown into extraordinaryEvents in schema fpml-eq-shared-5-10_xsd Drilldown into additionalPayment in schema fpml-eq-shared-5-10_xsd Drilldown into assetClass in schema fpml-shared-5-10_xsd Drilldown into productId in schema fpml-shared-5-10_xsd Drilldown into productType in schema fpml-shared-5-10_xsd Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd Drilldown into Product.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into Product in schema fpml-shared-5-10_xsd Drilldown into NettedSwapBase in schema fpml-eq-shared-5-10_xsd Drilldown into CorrelationSwap in schema fpml-correlation-swaps-5-10_xsdXSD Diagram of correlationSwap in schema fpml-correlation-swaps-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="correlationSwap" type="CorrelationSwap" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the structure of a correlation swap.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsA:primaryAssetClass 0 (1)
secondaryAssetClass nsA:secondaryAssetClass 0 unbounded
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
additionalPayment nsA:additionalPayment 0 unbounded
extraordinaryEvents nsA:extraordinaryEvents 0 (1)
correlationLeg nsA:correlationLeg (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
