Definition Type: Element
Name: counterCurrencyAmount
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:NonNegativeAmountSchedule
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The opposite currency amount. The counterCurrencyAmount element is only optional if averageStrike component is present or if the accrualRegion specifies the amount of counterCurrencyAmount to accrue, in all other cases this element must be populated.

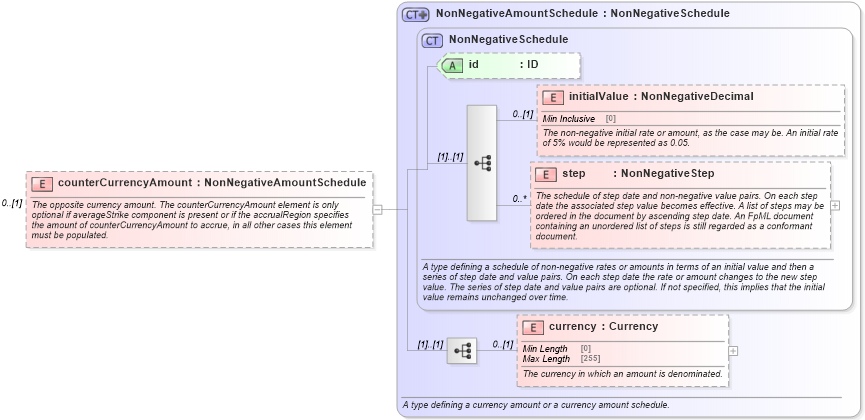

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into step in schema fpml-shared-5-10_xsd4 Drilldown into initialValue in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd4XSD Diagram of counterCurrencyAmount in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="counterCurrencyAmount" type="NonNegativeAmountSchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The opposite currency amount. The counterCurrencyAmount element is only optional if averageStrike component is present or if the accrualRegion specifies the amount of counterCurrencyAmount to accrue, in all other cases this element must be populated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsE:initialValue 0 (1)
step nsE:step 0 unbounded
currency nsE:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
