Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: NonNegativeAmountSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:NonNegativeSchedule
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining a currency amount or a currency amount schedule.
Collapse XSD Schema Diagram:

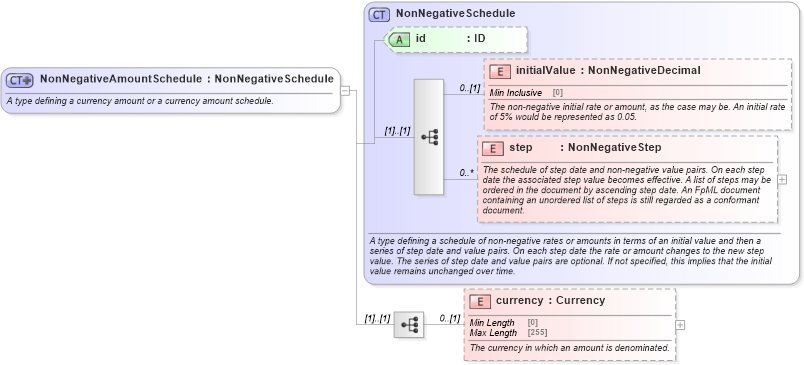

Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into step in schema fpml-shared-5-10_xsd4 Drilldown into initialValue in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd4XSD Diagram of NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="NonNegativeAmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a currency amount or a currency amount schedule.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NonNegativeSchedule">
            <xsd:sequence>
                <xsd:element name="currency" type="Currency" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The currency in which an amount is denominated.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsE:initialValue 0 (1)
step nsE:step 0 unbounded
currency nsE:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:changeInNotionalSchedule, nsE:counterCurrencyAmount, nsE:counterCurrencyAmount, nsE:counterCurrencyAmount, nsE:exerciseInNotionalSchedule, nsE:FxCounterCurrencyAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalAmount, nsE:notionalStepSchedulensE:outstandingNotionalSchedule, nsE:outstandingNotionalSchedule,
