Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: outstandingNotionalSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:NonNegativeAmountSchedule
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

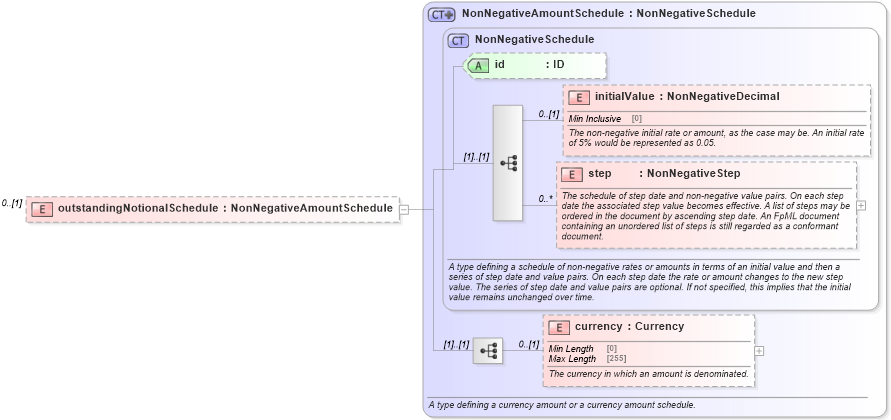

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into step in schema fpml-shared-5-10_xsd4 Drilldown into initialValue in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd4XSD Diagram of outstandingNotionalSchedule in schema fpml-business-events-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="outstandingNotionalSchedule" type="NonNegativeAmountSchedule" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsE:initialValue 0 (1)
step nsE:step 0 unbounded
currency nsE:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
