Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exerciseInNotionalSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:NonNegativeAmountSchedule
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Specifies the amount by which the option should be exercised expressed as notional schedule.

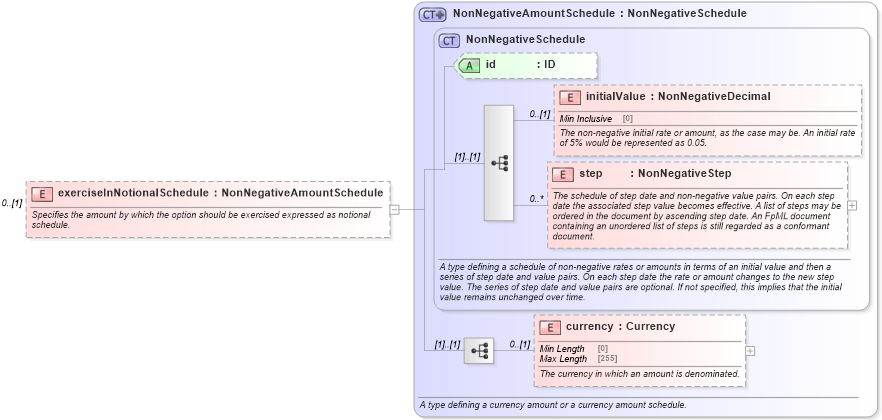

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into step in schema fpml-shared-5-10_xsd4 Drilldown into initialValue in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd4 Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd4XSD Diagram of exerciseInNotionalSchedule in schema fpml-business-events-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exerciseInNotionalSchedule" type="NonNegativeAmountSchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the amount by which the option should be exercised expressed as notional schedule.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsE:initialValue 0 (1)
step nsE:step 0 unbounded
currency nsE:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
