Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: DateOffset
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Offset
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining an offset used in calculating a date when this date is defined in reference to another date through a date offset. The type includes the convention for adjusting the date and an optional sequence element to indicate the order in a sequence of multiple date offsets.

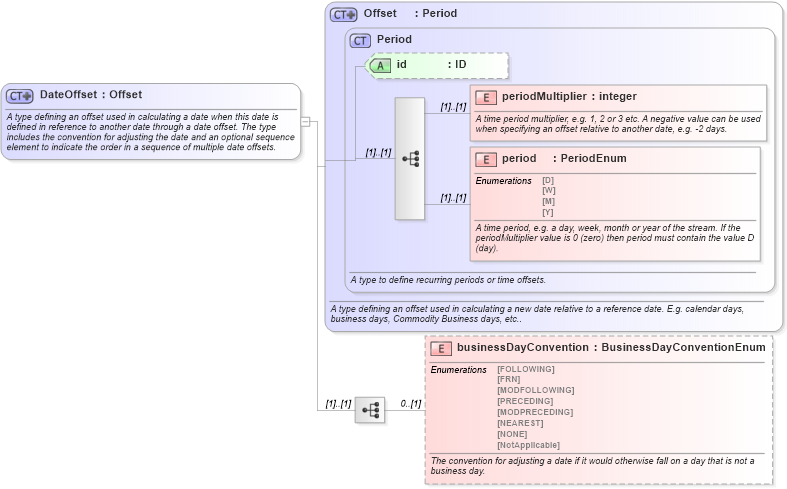

Collapse XSD Schema Diagram:
Drilldown into businessDayConvention in schema fpml-shared-5-10_xsd5 Drilldown into period in schema fpml-shared-5-10_xsd5 Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Period in schema fpml-shared-5-10_xsd5 Drilldown into Offset in schema fpml-shared-5-10_xsd5XSD Diagram of DateOffset in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="DateOffset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining an offset used in calculating a date when this date is defined in reference to another date through a date offset. The type includes the convention for adjusting the date and an optional sequence element to indicate the order in a sequence of multiple date offsets.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Offset">
            <xsd:sequence>
                <xsd:element name="businessDayConvention" type="BusinessDayConventionEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The convention for adjusting a date if it would otherwise fall on a day that is not a business day.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsF:periodMultiplier (1) (1)
period nsF:period (1) (1)
businessDayConvention nsF:businessDayConvention 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:dateOffset
