Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Offset
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Period
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining an offset used in calculating a new date relative to a reference date. E.g. calendar days, business days, Commodity Business days, etc..
Collapse XSD Schema Diagram:

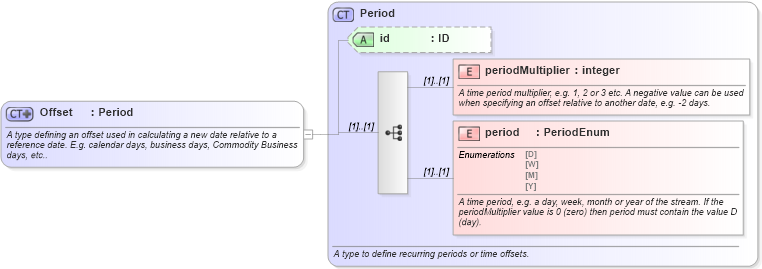

Drilldown into period in schema fpml-shared-5-10_xsd5 Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Period in schema fpml-shared-5-10_xsd5XSD Diagram of Offset in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Offset">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining an offset used in calculating a new date relative to a reference date. E.g. calendar days, business days, Commodity Business days, etc..</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Period">
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsF:periodMultiplier (1) (1)
period nsF:period (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:DateOffset, nsF:deliveryDateExpirationConvention, nsF:inflationLag, nsF:offset, nsF:RelativeDateOffset
