Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: offset
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Offset
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Indicates whether time applies to the actual day specified (in which case this element should be omitted) the day prior to that day (in which case periodMultiplier should be -1 and period should be Day) or the day subsequent to that day (in which case periodMultiplier should be 1 and period should be Day).

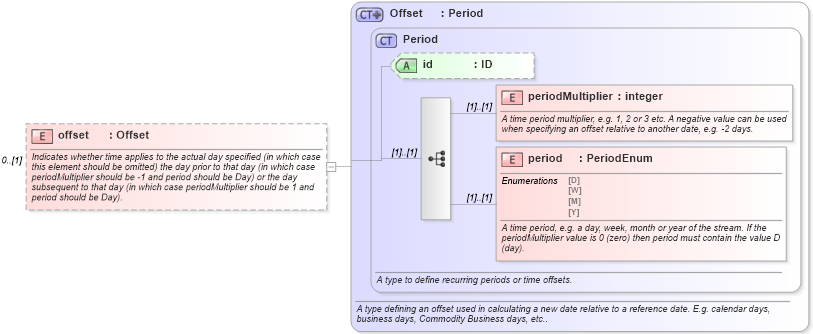

Collapse XSD Schema Diagram:
Drilldown into period in schema fpml-shared-5-10_xsd5 Drilldown into periodMultiplier in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Period in schema fpml-shared-5-10_xsd5 Drilldown into Offset in schema fpml-shared-5-10_xsd5XSD Diagram of offset in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="offset" type="Offset" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Indicates whether time applies to the actual day specified (in which case this element should be omitted) the day prior to that day (in which case periodMultiplier should be -1 and period should be Day) or the day subsequent to that day (in which case periodMultiplier should be 1 and period should be Day).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier nsF:periodMultiplier (1) (1)
period nsF:period (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
