Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: deliveryConditions
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ElectricityDelivery
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The physical delivery conditions for the transaction.

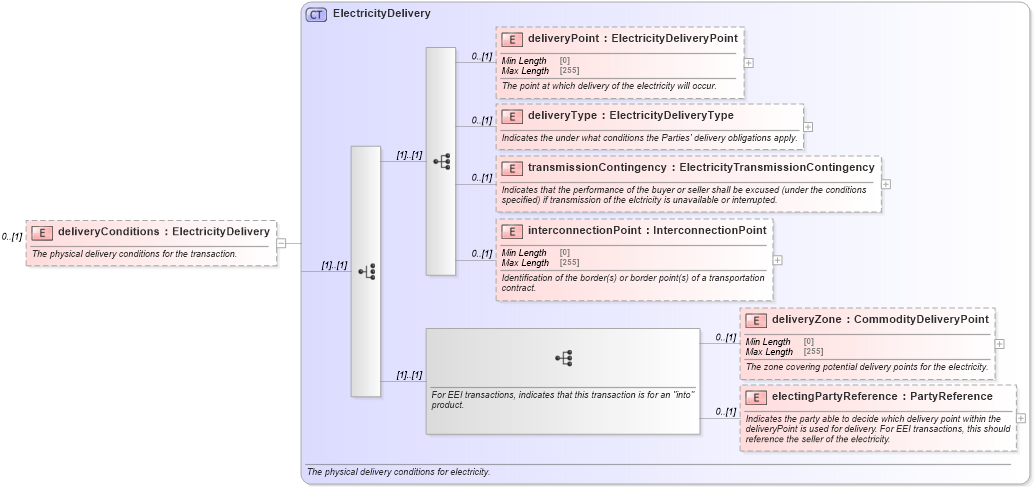

Collapse XSD Schema Diagram:
Drilldown into electingPartyReference in schema fpml-com-5-10_xsd2 Drilldown into deliveryZone in schema fpml-com-5-10_xsd2 Drilldown into interconnectionPoint in schema fpml-com-5-10_xsd2 Drilldown into transmissionContingency in schema fpml-com-5-10_xsd2 Drilldown into deliveryType in schema fpml-com-5-10_xsd2 Drilldown into deliveryPoint in schema fpml-com-5-10_xsd2 Drilldown into ElectricityDelivery in schema fpml-com-5-10_xsd2XSD Diagram of deliveryConditions in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="deliveryConditions" type="ElectricityDelivery" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical delivery conditions for the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
deliveryPoint nsE:deliveryPoint 0 (1)
deliveryType nsE:deliveryType 0 (1)
transmissionContingency nsE:transmissionContingency 0 (1)
interconnectionPoint nsE:interconnectionPoint 0 (1)
deliveryZone nsE:deliveryZone 0 (1)
electingPartyReference nsE:electingPartyReference 0 (1)
Collapse Derivation Tree:
