Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: dividendSwapOptionTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:DividendSwapOptionTransactionSupplement
Containing Schema: fpml-dividend-swaps-5-10.xsd
Abstract
Documentation:
Specifies the structure of the dividend swap transaction supplement.

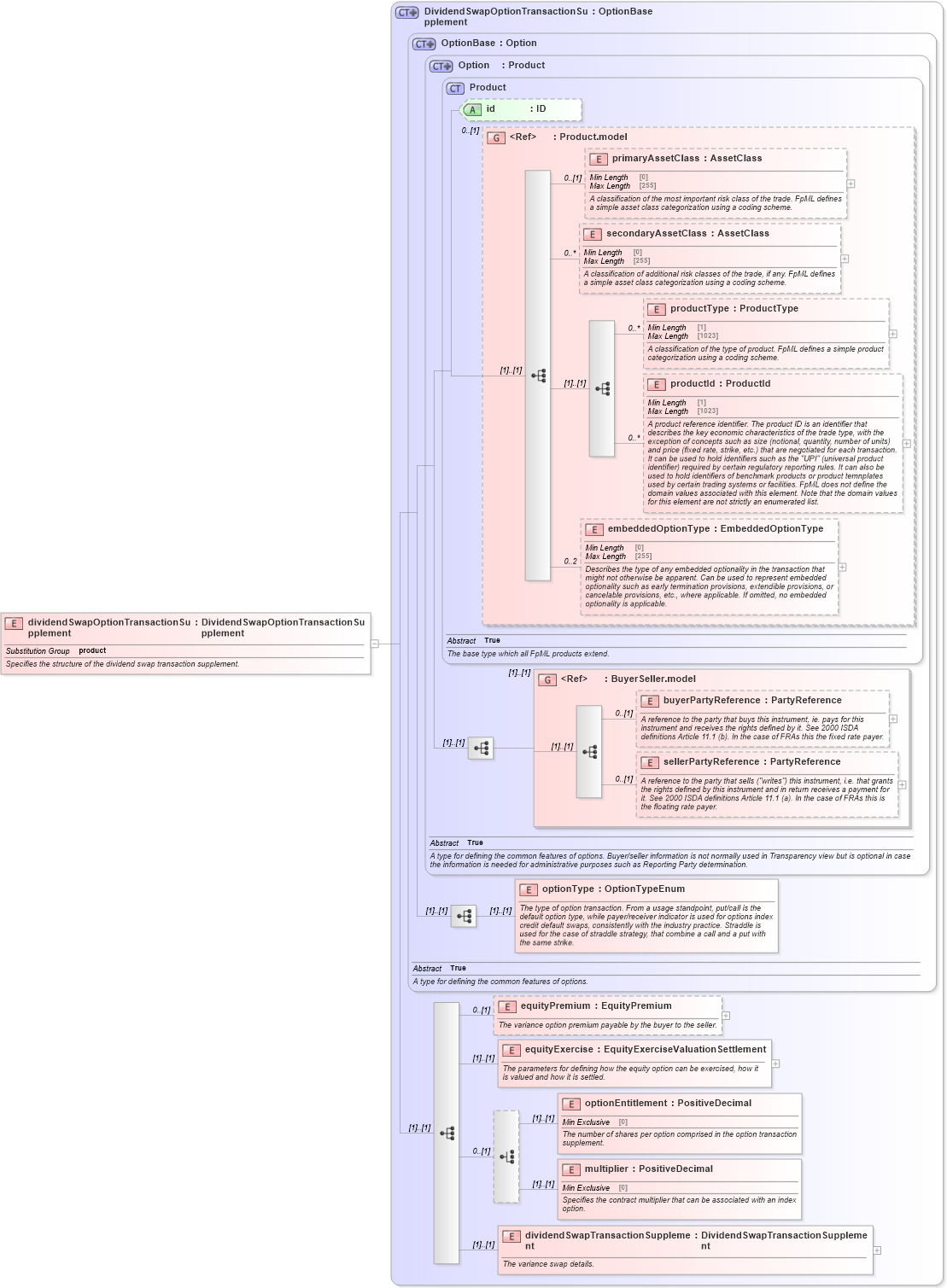

Collapse XSD Schema Diagram:
Drilldown into dividendSwapTransactionSupplement in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into multiplier in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into optionEntitlement in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into equityExercise in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into equityPremium in schema fpml-dividend-swaps-5-10_xsd3 Drilldown into optionType in schema fpml-option-shared-5-10_xsd4 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd5 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into Option in schema fpml-option-shared-5-10_xsd4 Drilldown into OptionBase in schema fpml-option-shared-5-10_xsd4 Drilldown into DividendSwapOptionTransactionSupplement in schema fpml-dividend-swaps-5-10_xsd3XSD Diagram of dividendSwapOptionTransactionSupplement in schema fpml-dividend-swaps-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="dividendSwapOptionTransactionSupplement" type="DividendSwapOptionTransactionSupplement" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies the structure of the dividend swap transaction supplement.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
buyerPartyReference nsF:buyerPartyReference 0 (1)
sellerPartyReference nsF:sellerPartyReference 0 (1)
optionType nsF:optionType (1) (1)
equityPremium nsF:equityPremium 0 (1)
equityExercise nsF:equityExercise (1) (1)
optionEntitlement nsF:optionEntitlement (1) (1)
multiplier nsF:multiplier (1) (1)
dividendSwapTransactionSupplement nsF:dividendSwapTransactionSupplement (1) (1)
<xs:group> nsF:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:product
