Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquityDerivativeLongFormBase
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:EquityDerivativeBase
Containing Schema: fpml-eqd-5-10.xsd
Abstract True
Documentation:
type for defining the common features of equity derivatives.

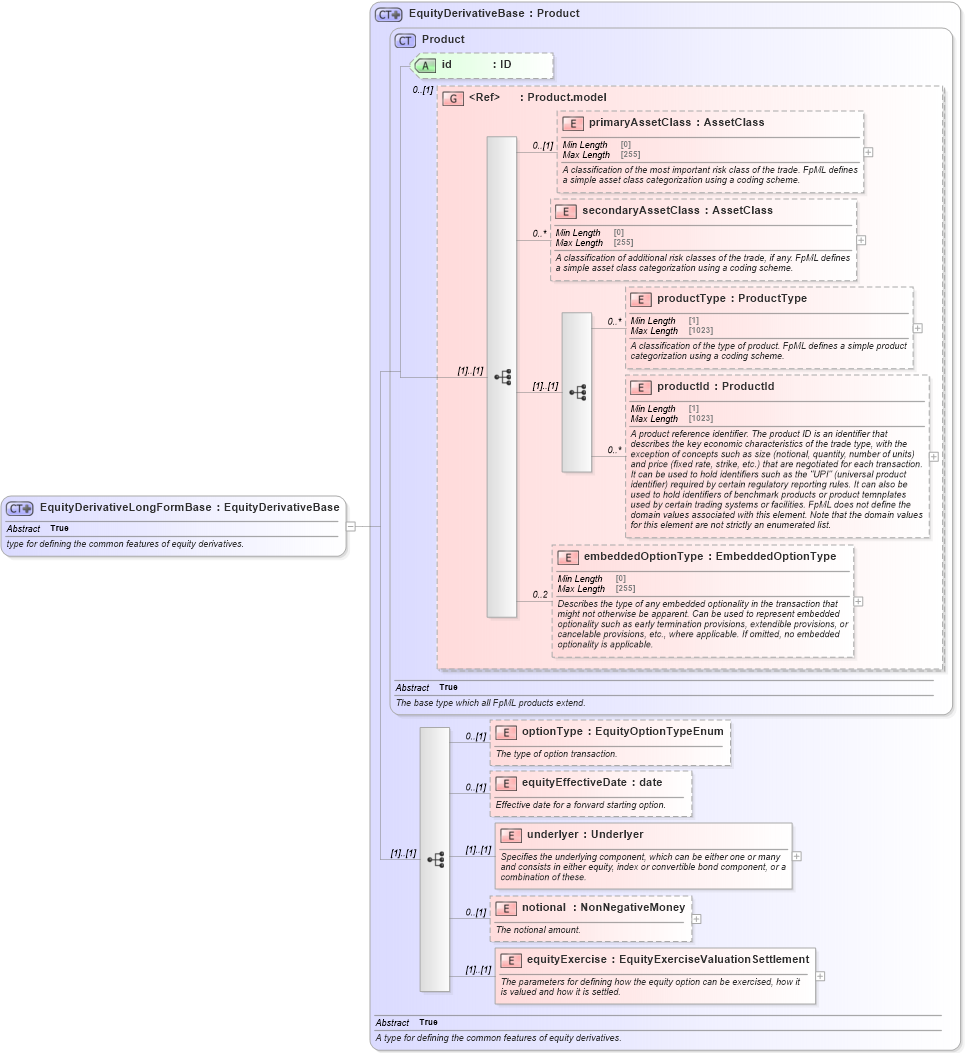

Collapse XSD Schema Diagram:
Drilldown into equityExercise in schema fpml-eqd-5-10_xsd3 Drilldown into notional in schema fpml-eqd-5-10_xsd3 Drilldown into underlyer in schema fpml-eqd-5-10_xsd3 Drilldown into equityEffectiveDate in schema fpml-eqd-5-10_xsd3 Drilldown into optionType in schema fpml-eqd-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into EquityDerivativeBase in schema fpml-eqd-5-10_xsd3XSD Diagram of EquityDerivativeLongFormBase in schema fpml-eqd-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquityDerivativeLongFormBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">type for defining the common features of equity derivatives.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="EquityDerivativeBase">
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
optionType nsF:optionType 0 (1)
equityEffectiveDate nsF:equityEffectiveDate 0 (1)
underlyer nsF:underlyer (1) (1)
notional nsF:notional 0 (1)
equityExercise nsF:equityExercise (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:EquityForward
