Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: equityValuation
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:EquityValuation
Containing Schema: fpml-eqd-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The parameters for defining when valuation of the underlying takes place.

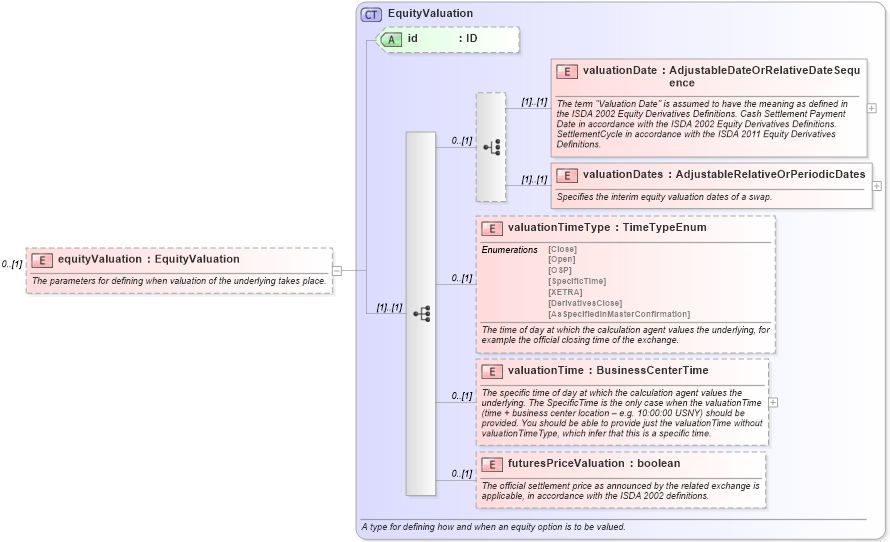

Collapse XSD Schema Diagram:
Drilldown into futuresPriceValuation in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationTime in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationTimeType in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationDates in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationDate in schema fpml-eq-shared-5-10_xsd3 Drilldown into id in schema fpml-eq-shared-5-10_xsd3 Drilldown into EquityValuation in schema fpml-eq-shared-5-10_xsd3XSD Diagram of equityValuation in schema fpml-eqd-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="equityValuation" type="EquityValuation" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining when valuation of the underlying takes place.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
valuationDate nsF:valuationDate (1) (1)
valuationDates nsF:valuationDates (1) (1)
valuationTimeType nsF:valuationTimeType 0 (1)
valuationTime nsF:valuationTime 0 (1)
futuresPriceValuation nsF:futuresPriceValuation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
