Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquityValuation
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-eq-shared-5-10.xsd
Abstract
Documentation:
A type for defining how and when an equity option is to be valued.

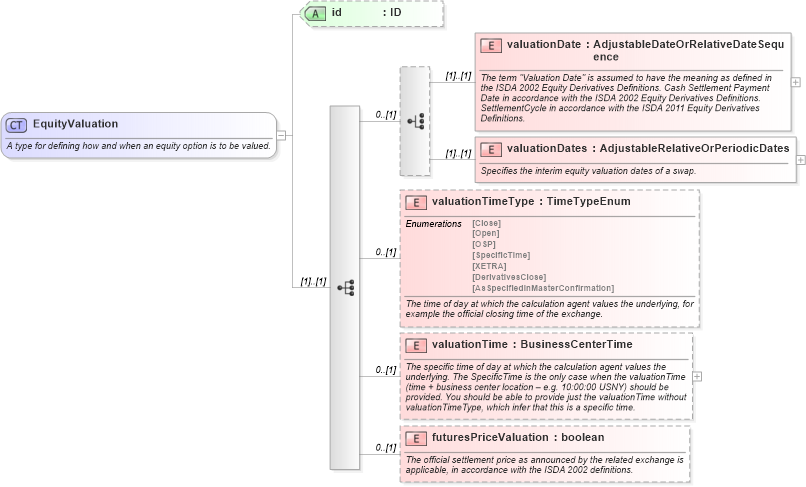

Collapse XSD Schema Diagram:
Drilldown into futuresPriceValuation in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationTime in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationTimeType in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationDates in schema fpml-eq-shared-5-10_xsd3 Drilldown into valuationDate in schema fpml-eq-shared-5-10_xsd3 Drilldown into id in schema fpml-eq-shared-5-10_xsd3XSD Diagram of EquityValuation in schema fpml-eq-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquityValuation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining how and when an equity option is to be valued.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:choice minOccurs="0">
            <xsd:element name="valuationDate" type="AdjustableDateOrRelativeDateSequence">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">The term "Valuation Date" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions. Cash Settlement Payment Date in accordance with the ISDA 2002 Equity Derivatives Definitions. SettlementCycle in accordance with the ISDA 2011 Equity Derivatives Definitions.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="valuationDates" type="AdjustableRelativeOrPeriodicDates">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Specifies the interim equity valuation dates of a swap.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="valuationTimeType" type="TimeTypeEnum" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The time of day at which the calculation agent values the underlying, for example the official closing time of the exchange.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="valuationTime" type="BusinessCenterTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The specific time of day at which the calculation agent values the underlying. The SpecificTime is the only case when the valuationTime (time + business center location – e.g. 10:00:00 USNY) should be provided. You should be able to provide just the valuationTime without valuationTimeType, which infer that this is a specific time.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="futuresPriceValuation" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The official settlement price as announced by the related exchange is applicable, in accordance with the ISDA 2002 definitions.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
valuationDate nsF:valuationDate (1) (1)
valuationDates nsF:valuationDates (1) (1)
valuationTimeType nsF:valuationTimeType 0 (1)
valuationTime nsF:valuationTime 0 (1)
futuresPriceValuation nsF:futuresPriceValuation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:equityValuation, nsF:valuation, nsF:valuationRules
