Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ExchangeTradedFund
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:ExchangeTradedCalculatedPrice
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
An exchange traded fund whose price depends on exchange traded constituents.

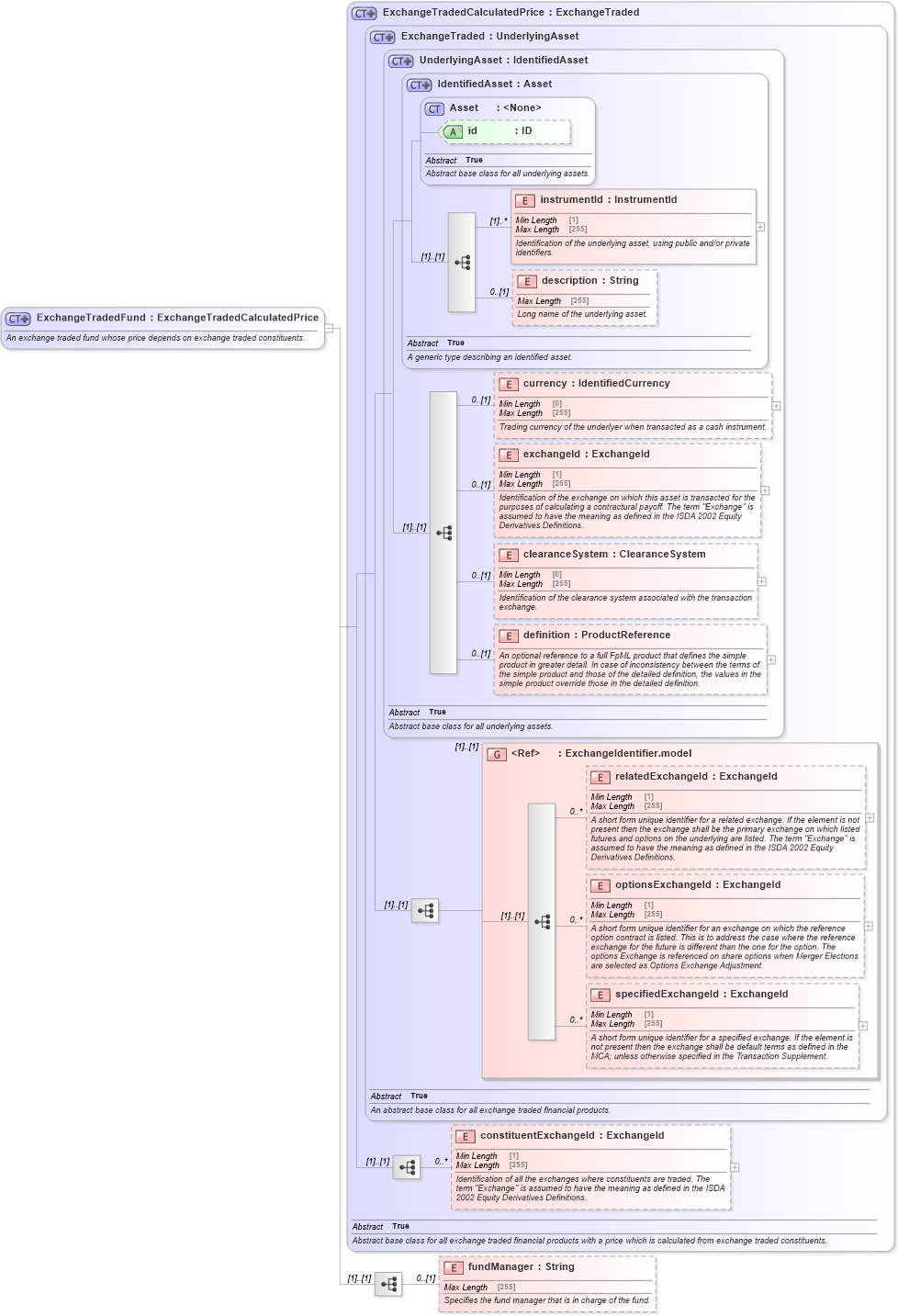

Collapse XSD Schema Diagram:
Drilldown into fundManager in schema fpml-asset-5-10_xsd3 Drilldown into constituentExchangeId in schema fpml-asset-5-10_xsd3 Drilldown into specifiedExchangeId in schema fpml-asset-5-10_xsd3 Drilldown into optionsExchangeId in schema fpml-asset-5-10_xsd3 Drilldown into relatedExchangeId in schema fpml-asset-5-10_xsd3 Drilldown into ExchangeIdentifier.model in schema fpml-asset-5-10_xsd3 Drilldown into definition in schema fpml-asset-5-10_xsd3 Drilldown into clearanceSystem in schema fpml-asset-5-10_xsd3 Drilldown into exchangeId in schema fpml-asset-5-10_xsd3 Drilldown into currency in schema fpml-asset-5-10_xsd3 Drilldown into description in schema fpml-asset-5-10_xsd3 Drilldown into instrumentId in schema fpml-asset-5-10_xsd3 Drilldown into id in schema fpml-asset-5-10_xsd3 Drilldown into Asset in schema fpml-asset-5-10_xsd3 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd3 Drilldown into UnderlyingAsset in schema fpml-asset-5-10_xsd3 Drilldown into ExchangeTraded in schema fpml-asset-5-10_xsd3 Drilldown into ExchangeTradedCalculatedPrice in schema fpml-asset-5-10_xsd3XSD Diagram of ExchangeTradedFund in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ExchangeTradedFund">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An exchange traded fund whose price depends on exchange traded constituents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ExchangeTradedCalculatedPrice">
            <xsd:sequence>
                <xsd:element name="fundManager" type="String" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies the fund manager that is in charge of the fund.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsD:instrumentId (1) unbounded
description nsD:description 0 (1)
currency nsD:currency 0 (1)
exchangeId nsD:exchangeId 0 (1)
clearanceSystem nsD:clearanceSystem 0 (1)
definition nsD:definition 0 (1)
relatedExchangeId nsD:relatedExchangeId 0 unbounded
optionsExchangeId nsD:optionsExchangeId 0 unbounded
specifiedExchangeId nsD:specifiedExchangeId 0 unbounded
constituentExchangeId nsD:constituentExchangeId 0 unbounded
fundManager nsD:fundManager 0 (1)
<xs:group> nsD:ExchangeIdentifier.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:exchangeTradedFund
