Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: ExchangeTradedOption
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsB:ExchangeTradedContract
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
An exchange traded option.

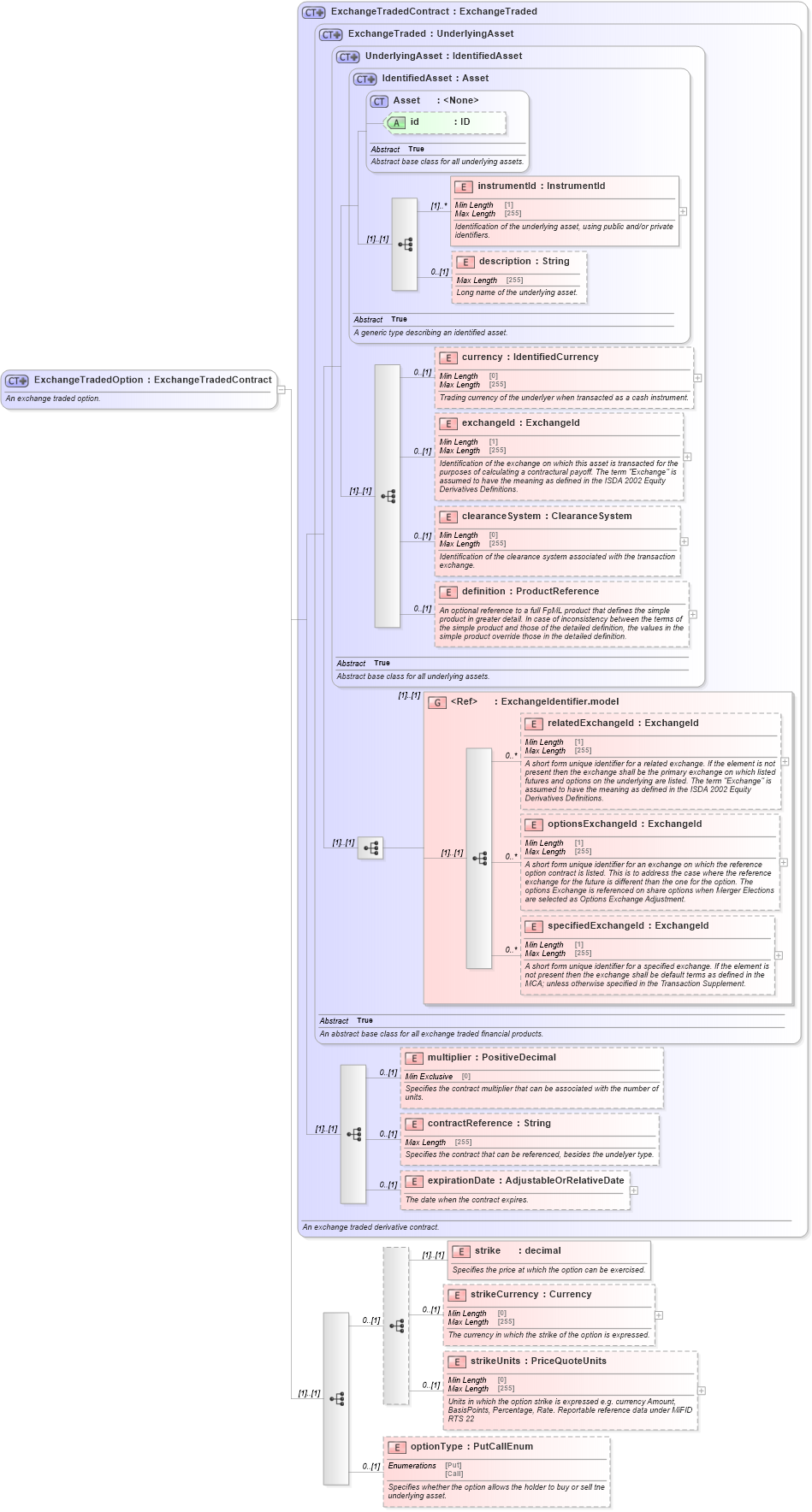

Collapse XSD Schema Diagram:
Drilldown into optionType in schema fpml-asset-5-10_xsd1 Drilldown into strikeUnits in schema fpml-asset-5-10_xsd1 Drilldown into strikeCurrency in schema fpml-asset-5-10_xsd1 Drilldown into strike in schema fpml-asset-5-10_xsd1 Drilldown into expirationDate in schema fpml-asset-5-10_xsd1 Drilldown into contractReference in schema fpml-asset-5-10_xsd1 Drilldown into multiplier in schema fpml-asset-5-10_xsd1 Drilldown into specifiedExchangeId in schema fpml-asset-5-10_xsd1 Drilldown into optionsExchangeId in schema fpml-asset-5-10_xsd1 Drilldown into relatedExchangeId in schema fpml-asset-5-10_xsd1 Drilldown into ExchangeIdentifier.model in schema fpml-asset-5-10_xsd1 Drilldown into definition in schema fpml-asset-5-10_xsd1 Drilldown into clearanceSystem in schema fpml-asset-5-10_xsd1 Drilldown into exchangeId in schema fpml-asset-5-10_xsd1 Drilldown into currency in schema fpml-asset-5-10_xsd1 Drilldown into description in schema fpml-asset-5-10_xsd1 Drilldown into instrumentId in schema fpml-asset-5-10_xsd1 Drilldown into id in schema fpml-asset-5-10_xsd1 Drilldown into Asset in schema fpml-asset-5-10_xsd1 Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd1 Drilldown into UnderlyingAsset in schema fpml-asset-5-10_xsd1 Drilldown into ExchangeTraded in schema fpml-asset-5-10_xsd1 Drilldown into ExchangeTradedContract in schema fpml-asset-5-10_xsd1XSD Diagram of ExchangeTradedOption in schema fpml-asset-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ExchangeTradedOption">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An exchange traded option.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ExchangeTradedContract">
            <xsd:sequence>
                <xsd:sequence minOccurs="0">
                    <xsd:element name="strike" type="xsd:decimal">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Specifies the price at which the option can be exercised.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="strikeCurrency" type="Currency" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The currency in which the strike of the option is expressed.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="strikeUnits" type="PriceQuoteUnits" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>Units in which the option strike is expressed e.g. currency Amount, BasisPoints, Percentage, Rate. Reportable reference data under MiFID RTS 22</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
                <xsd:element name="optionType" type="PutCallEnum" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies whether the option allows the holder to buy or sell tne underlying asset.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsB:instrumentId (1) unbounded
description nsB:description 0 (1)
currency nsB:currency 0 (1)
exchangeId nsB:exchangeId 0 (1)
clearanceSystem nsB:clearanceSystem 0 (1)
definition nsB:definition 0 (1)
relatedExchangeId nsB:relatedExchangeId 0 unbounded
optionsExchangeId nsB:optionsExchangeId 0 unbounded
specifiedExchangeId nsB:specifiedExchangeId 0 unbounded
multiplier nsB:multiplier 0 (1)
contractReference nsB:contractReference 0 (1)
expirationDate nsB:expirationDate 0 (1)
strike nsB:strike (1) (1)
strikeCurrency nsB:strikeCurrency 0 (1)
strikeUnits nsB:strikeUnits 0 (1)
optionType nsB:optionType 0 (1)
<xs:group> nsB:ExchangeIdentifier.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:option
