Docs for schema item exercise in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	exercise
Namespace:	http://www.fpml.org/FpML-5/reporting
Type:	nsE:CommodityDigitalExercise
Containing Schema:	fpml-com-5-10.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract
Documentation:	The parameters for defining how the commodity option can be exercised and how it is settled.

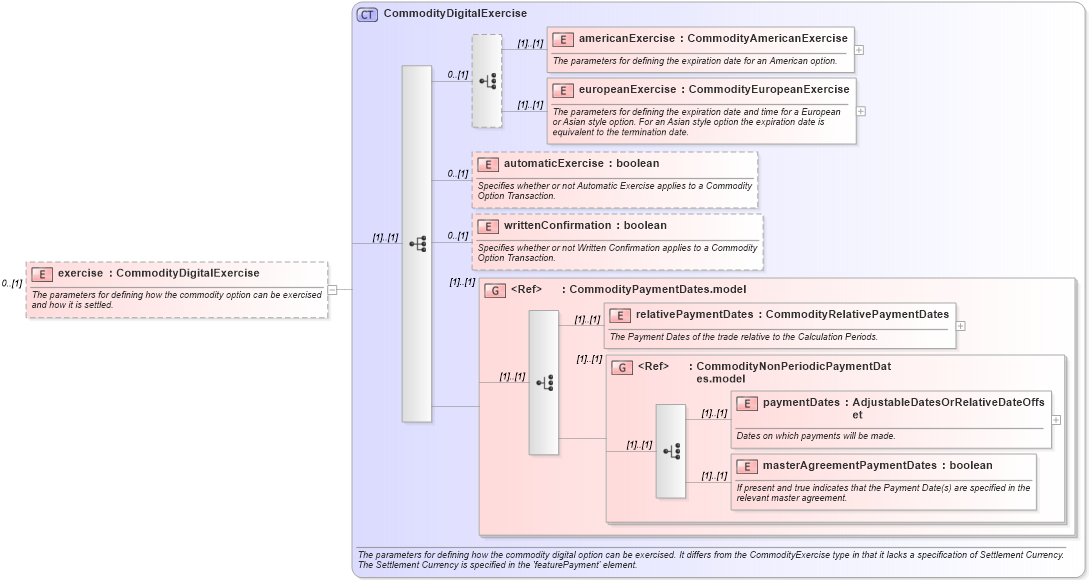

XSD Schema Diagram:

XSD Diagram of exercise in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="exercise" type="CommodityDigitalExercise" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The parameters for defining how the commodity option can be exercised and how it is settled.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
americanExercise	nsE:americanExercise	(1)	(1)
europeanExercise	nsE:europeanExercise	(1)	(1)
automaticExercise	nsE:automaticExercise	0	(1)
writtenConfirmation	nsE:writtenConfirmation	0	(1)
relativePaymentDates	nsE:relativePaymentDates	(1)	(1)
paymentDates	nsE:paymentDates	(1)	(1)
masterAgreementPaymentDates	nsE:masterAgreementPaymentDates	(1)	(1)
<xs:group>	nsE:CommodityPaymentDates.model	(1)	(1)
<xs:group>	nsE:CommodityNonPeriodicPaymentDates.model	(1)	(1)

Derivation Tree:
	nsE:CommodityDigitalExercise *exercise*
