Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: exerciseFee
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:ExerciseFee
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A fee to be paid on exercise. This could be represented as an amount or a rate and notional reference on which to apply the rate.

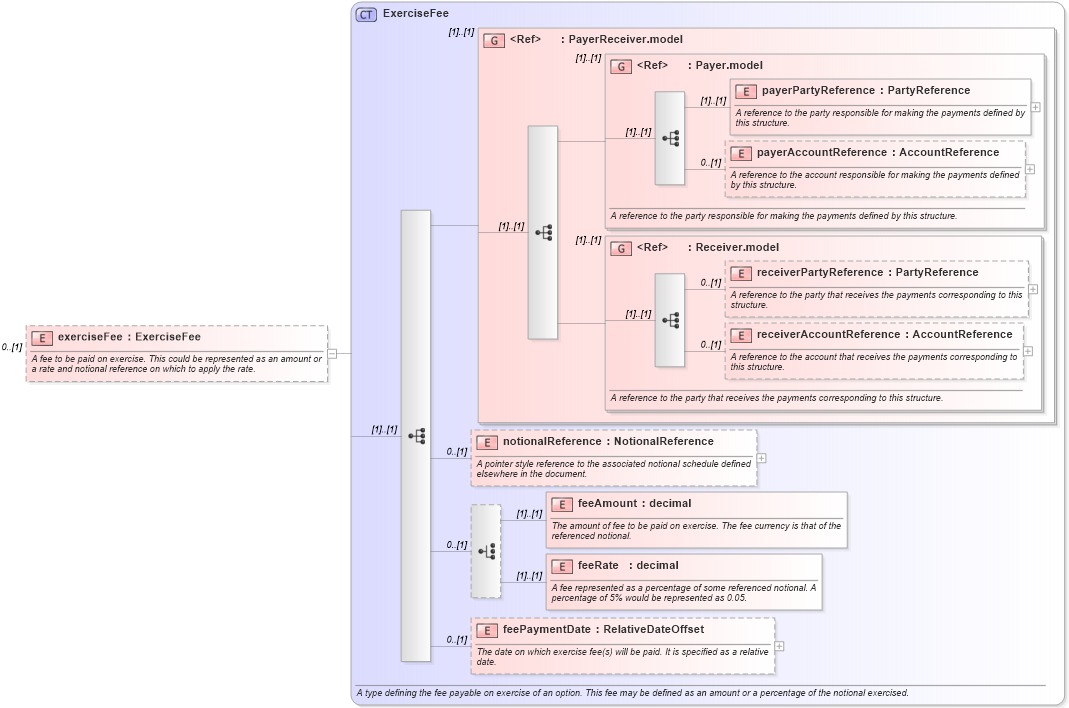

Collapse XSD Schema Diagram:
Drilldown into feePaymentDate in schema fpml-shared-5-10_xsd3 Drilldown into feeRate in schema fpml-shared-5-10_xsd3 Drilldown into feeAmount in schema fpml-shared-5-10_xsd3 Drilldown into notionalReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd3 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Payer.model in schema fpml-shared-5-10_xsd3 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd3 Drilldown into ExerciseFee in schema fpml-shared-5-10_xsd3XSD Diagram of exerciseFee in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="exerciseFee" type="ExerciseFee" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A fee to be paid on exercise. This could be represented as an amount or a rate and notional reference on which to apply the rate.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsD:payerPartyReference (1) (1)
payerAccountReference nsD:payerAccountReference 0 (1)
receiverPartyReference nsD:receiverPartyReference 0 (1)
receiverAccountReference nsD:receiverAccountReference 0 (1)
notionalReference nsD:notionalReference 0 (1)
feeAmount nsD:feeAmount (1) (1)
feeRate nsD:feeRate (1) (1)
feePaymentDate nsD:feePaymentDate 0 (1)
<xs:group> nsD:PayerReceiver.model (1) (1)
<xs:group> nsD:Payer.model (1) (1)
<xs:group> nsD:Receiver.model (1) (1)
Collapse Derivation Tree:
