Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FacilitySummary
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FacilityIdentifier
Containing Schema: fpml-loan-5-10.xsd
Abstract
Documentation:
A short form of a facility.

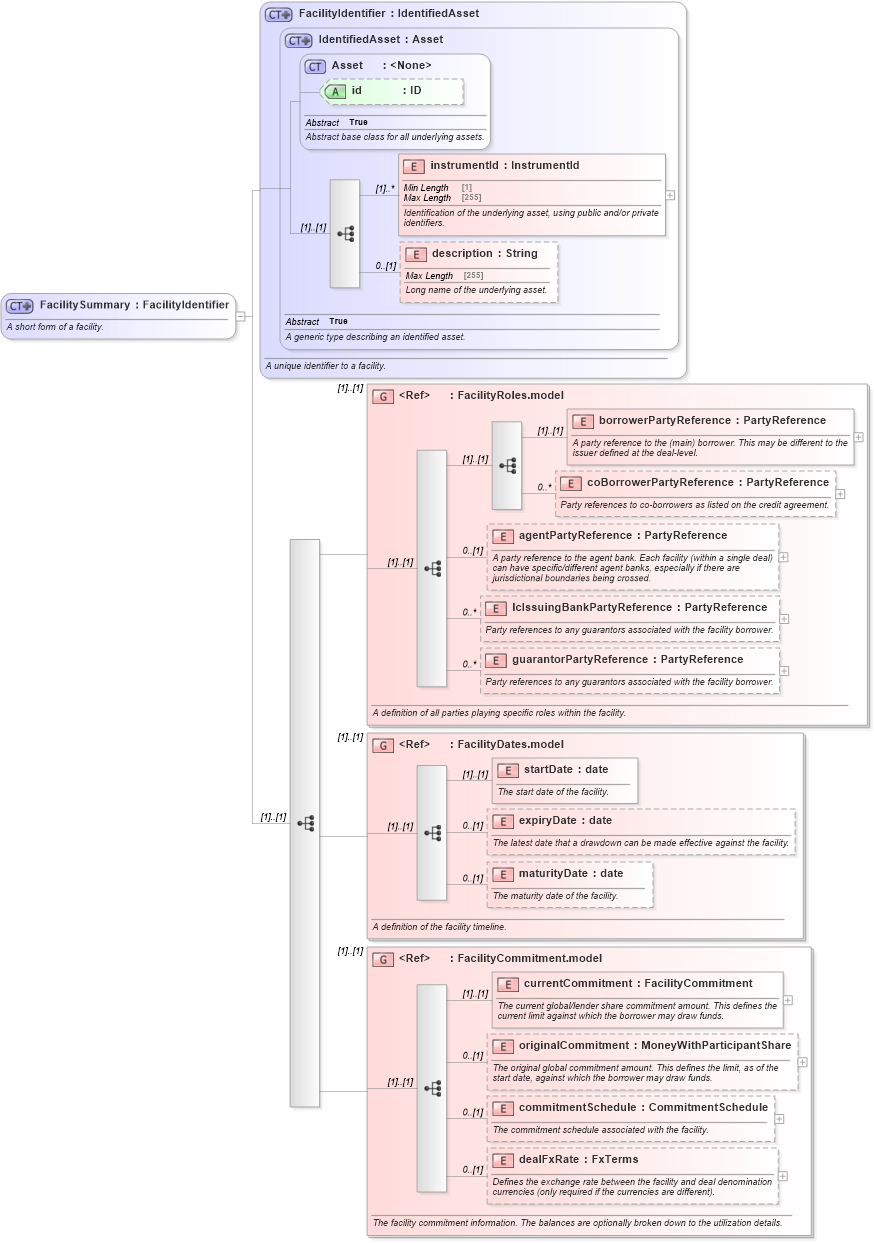

Collapse XSD Schema Diagram:
Drilldown into dealFxRate in schema fpml-loan-5-10_xsd Drilldown into commitmentSchedule in schema fpml-loan-5-10_xsd Drilldown into originalCommitment in schema fpml-loan-5-10_xsd Drilldown into currentCommitment in schema fpml-loan-5-10_xsd Drilldown into FacilityCommitment.model in schema fpml-loan-5-10_xsd Drilldown into maturityDate in schema fpml-loan-5-10_xsd Drilldown into expiryDate in schema fpml-loan-5-10_xsd Drilldown into startDate in schema fpml-loan-5-10_xsd Drilldown into FacilityDates.model in schema fpml-loan-5-10_xsd Drilldown into guarantorPartyReference in schema fpml-loan-5-10_xsd Drilldown into lcIssuingBankPartyReference in schema fpml-loan-5-10_xsd Drilldown into agentPartyReference in schema fpml-loan-5-10_xsd Drilldown into coBorrowerPartyReference in schema fpml-loan-5-10_xsd Drilldown into borrowerPartyReference in schema fpml-loan-5-10_xsd Drilldown into FacilityRoles.model in schema fpml-loan-5-10_xsd Drilldown into description in schema fpml-asset-5-10_xsd Drilldown into instrumentId in schema fpml-asset-5-10_xsd Drilldown into id in schema fpml-asset-5-10_xsd Drilldown into Asset in schema fpml-asset-5-10_xsd Drilldown into IdentifiedAsset in schema fpml-asset-5-10_xsd Drilldown into FacilityIdentifier in schema fpml-loan-5-10_xsdXSD Diagram of FacilitySummary in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FacilitySummary">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A short form of a facility.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FacilityIdentifier">
            <xsd:sequence>
                <xsd:group ref="FacilityRoles.model">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A definition of all parties playing specific roles within the facility.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:group ref="FacilityDates.model">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A definition of the facility timeline.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:group ref="FacilityCommitment.model">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The facility commitment information. The balances are optionally broken down to the utilization details.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
instrumentId nsA:instrumentId (1) unbounded
description nsA:description 0 (1)
borrowerPartyReference nsA:borrowerPartyReference (1) (1)
coBorrowerPartyReference nsA:coBorrowerPartyReference 0 unbounded
agentPartyReference nsA:agentPartyReference 0 (1)
lcIssuingBankPartyReference nsA:lcIssuingBankPartyReference 0 unbounded
guarantorPartyReference nsA:guarantorPartyReference 0 unbounded
startDate nsA:startDate (1) (1)
expiryDate nsA:expiryDate 0 (1)
maturityDate nsA:maturityDate 0 (1)
currentCommitment nsA:currentCommitment (1) (1)
originalCommitment nsA:originalCommitment 0 (1)
commitmentSchedule nsA:commitmentSchedule 0 (1)
dealFxRate nsA:dealFxRate 0 (1)
<xs:group> nsA:FacilityRoles.model (1) (1)
<xs:group> nsA:FacilityDates.model (1) (1)
<xs:group> nsA:FacilityCommitment.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:AbstractFacility, nsA:facilitySummary
