Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FixedPrice
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-com-5-10.xsd
Abstract
Documentation:
A type defining the Fixed Price.

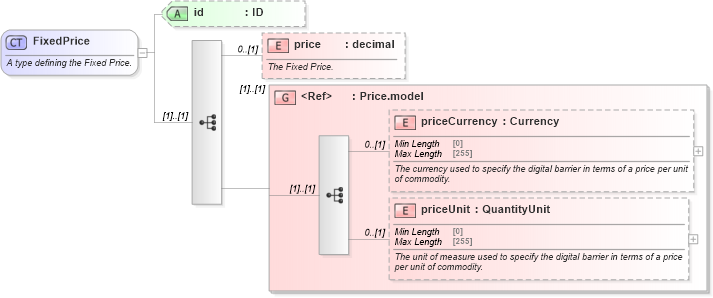

Collapse XSD Schema Diagram:
Drilldown into priceUnit in schema fpml-com-5-10_xsd2 Drilldown into priceCurrency in schema fpml-com-5-10_xsd2 Drilldown into Price.model in schema fpml-com-5-10_xsd2 Drilldown into price in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2XSD Diagram of FixedPrice in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FixedPrice">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the Fixed Price.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="price" type="xsd:decimal" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The Fixed Price.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="Price.model" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
price nsE:price 0 (1)
priceCurrency nsE:priceCurrency 0 (1)
priceUnit nsE:priceUnit 0 (1)
<xs:group> nsE:Price.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:fixedPrice, nsE:fixedPricensE:fixedPrice, nsE:fixedPriceStep, nsE:levelPrice, nsE:SettlementPeriodsFixedPrice, nsE:settlementPeriodsPriceStep,
