Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsPriceStep
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FixedPrice
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the Fixed Price for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriods Reference. There must be a Fixed Price step specified for each Calculation Period, regardless of whether the Fixed Price changes or remains the same between periods.

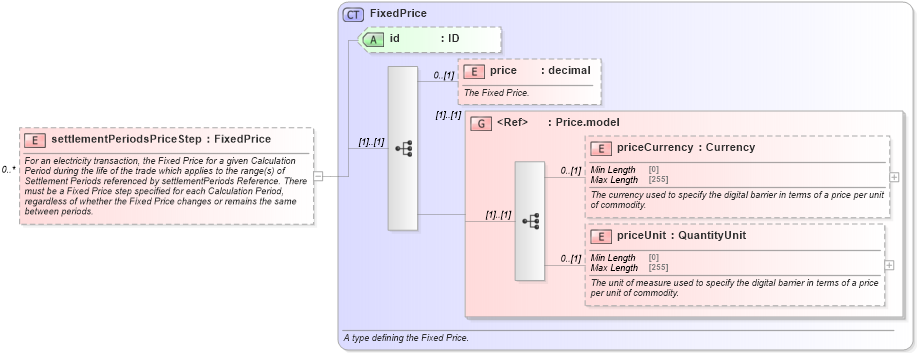

Collapse XSD Schema Diagram:
Drilldown into priceUnit in schema fpml-com-5-10_xsd2 Drilldown into priceCurrency in schema fpml-com-5-10_xsd2 Drilldown into Price.model in schema fpml-com-5-10_xsd2 Drilldown into price in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2 Drilldown into FixedPrice in schema fpml-com-5-10_xsd2XSD Diagram of settlementPeriodsPriceStep in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsPriceStep" type="FixedPrice" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">For an electricity transaction, the Fixed Price for a given Calculation Period during the life of the trade which applies to the range(s) of Settlement Periods referenced by settlementPeriods Reference. There must be a Fixed Price step specified for each Calculation Period, regardless of whether the Fixed Price changes or remains the same between periods.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
price nsE:price 0 (1)
priceCurrency nsE:priceCurrency 0 (1)
priceUnit nsE:priceUnit 0 (1)
<xs:group> nsE:Price.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
