Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxAccrualForward
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Product
Containing Schema: fpml-fx-accruals-5-10.xsd
Abstract
Documentation:
The product defines a schedule of expiry and delivery dates which specify settlement periods. The product further defines a schedule of fixing (or observation) dates and defines regions of spot where the product settlement amounts will accrue. There are n total fixings. One accumulates a fixed proportion of Notional (1/n) for every observation date that spot fixes within the pre-defined limits of the accrual regions. If spot breaks the limits, the Notional stops accumulating during the fixings outside the limits, but continues accruing once spot comes back to the accruing region. At expiry, one buys the accrued Notional at the pre-agreed hedge rate. Payout can be cash or physical. The variation of this product include: Accrual Forward (European and American), Double Accrual Forward (DAF), Boosted Accrual Forward, Fading Forward, Leveraged Accrual Forward, Accrual Forward with Collars, etc.

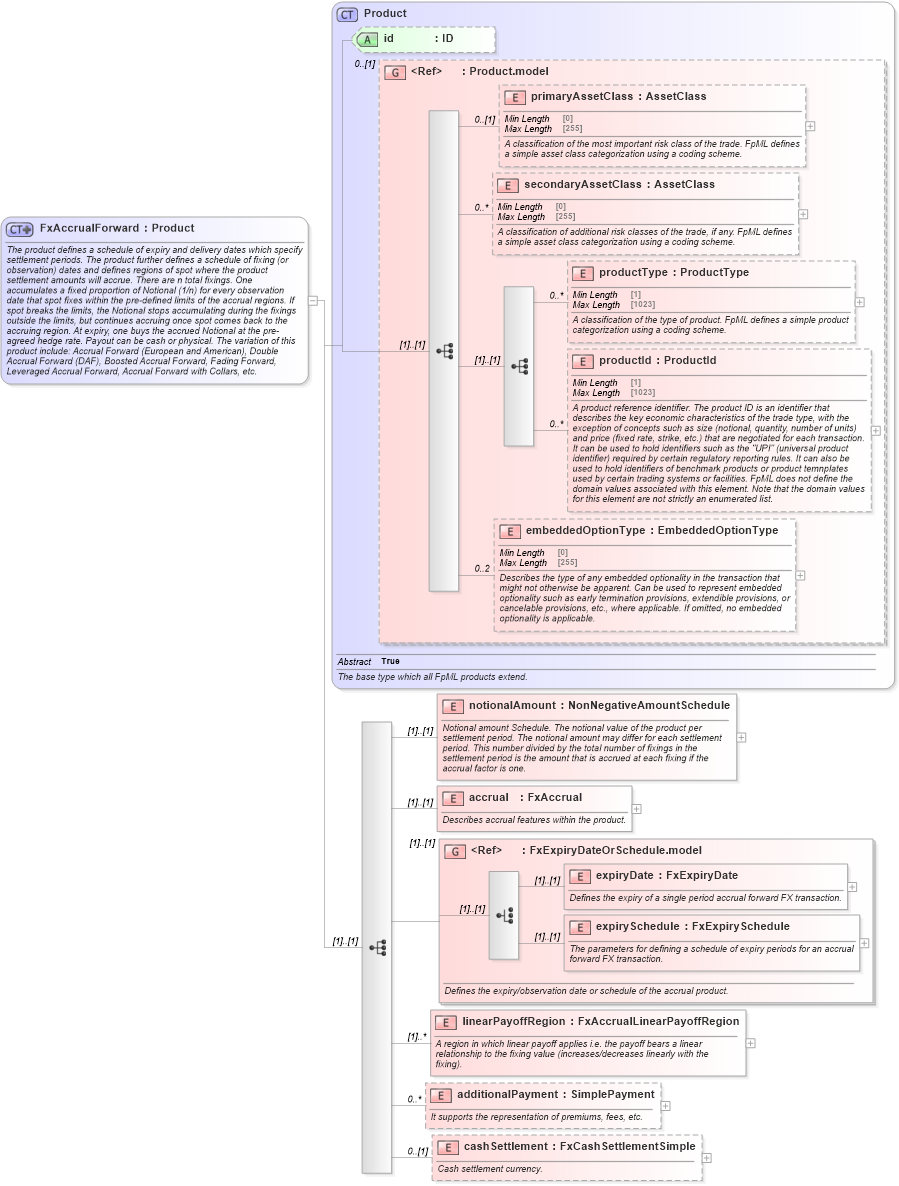

Collapse XSD Schema Diagram:
Drilldown into cashSettlement in schema fpml-fx-accruals-5-10_xsd3 Drilldown into additionalPayment in schema fpml-fx-accruals-5-10_xsd3 Drilldown into linearPayoffRegion in schema fpml-fx-accruals-5-10_xsd3 Drilldown into expirySchedule in schema fpml-fx-accruals-5-10_xsd3 Drilldown into expiryDate in schema fpml-fx-accruals-5-10_xsd3 Drilldown into FxExpiryDateOrSchedule.model in schema fpml-fx-accruals-5-10_xsd3 Drilldown into accrual in schema fpml-fx-accruals-5-10_xsd3 Drilldown into notionalAmount in schema fpml-fx-accruals-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5XSD Diagram of FxAccrualForward in schema fpml-fx-accruals-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxAccrualForward">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The product defines a schedule of expiry and delivery dates which specify settlement periods. The product further defines a schedule of fixing (or observation) dates and defines regions of spot where the product settlement amounts will accrue. There are n total fixings. One accumulates a fixed proportion of Notional (1/n) for every observation date that spot fixes within the pre-defined limits of the accrual regions. If spot breaks the limits, the Notional stops accumulating during the fixings outside the limits, but continues accruing once spot comes back to the accruing region. At expiry, one buys the accrued Notional at the pre-agreed hedge rate. Payout can be cash or physical. The variation of this product include: Accrual Forward (European and American), Double Accrual Forward (DAF), Boosted Accrual Forward, Fading Forward, Leveraged Accrual Forward, Accrual Forward with Collars, etc.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:element name="notionalAmount" type="NonNegativeAmountSchedule">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Notional amount Schedule. The notional value of the product per settlement period. The notional amount may differ for each settlement period. This number divided by the total number of fixings in the settlement period is the amount that is accrued at each fixing if the accrual factor is one.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="accrual" type="FxAccrual">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Describes accrual features within the product.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="FxExpiryDateOrSchedule.model">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the expiry/observation date or schedule of the accrual product.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:element name="linearPayoffRegion" type="FxAccrualLinearPayoffRegion" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A region in which linear payoff applies i.e. the payoff bears a linear relationship to the fixing value (increases/decreases linearly with the fixing).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="additionalPayment" type="SimplePayment" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">It supports the representation of premiums, fees, etc.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="cashSettlement" type="FxCashSettlementSimple" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Cash settlement currency.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
notionalAmount nsF:notionalAmount (1) (1)
accrual nsF:accrual (1) (1)
expiryDate nsF:expiryDate (1) (1)
expirySchedule nsF:expirySchedule (1) (1)
linearPayoffRegion nsF:linearPayoffRegion (1) unbounded
additionalPayment nsF:additionalPayment 0 unbounded
cashSettlement nsF:cashSettlement 0 (1)
<xs:group> nsF:FxExpiryDateOrSchedule.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:fxAccrualForward
