Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxAccrualLinearPayoffRegion
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxAccrualPayoffRegion
Containing Schema: fpml-fx-accruals-5-10.xsd
Abstract
Documentation:
A fixing region in which the payoff varies linearly with the fixing value.

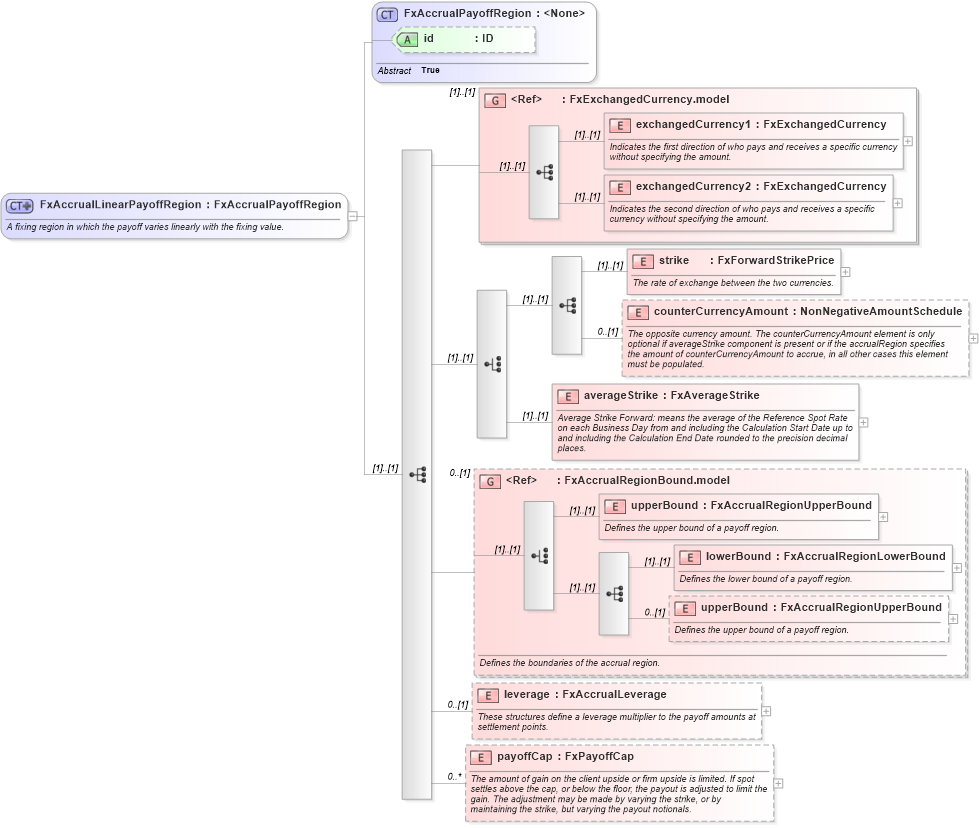

Collapse XSD Schema Diagram:
Drilldown into payoffCap in schema fpml-fx-accruals-5-10_xsd Drilldown into leverage in schema fpml-fx-accruals-5-10_xsd Drilldown into upperBound in schema fpml-fx-accruals-5-10_xsd Drilldown into lowerBound in schema fpml-fx-accruals-5-10_xsd Drilldown into upperBound in schema fpml-fx-accruals-5-10_xsd Drilldown into FxAccrualRegionBound.model in schema fpml-fx-accruals-5-10_xsd Drilldown into averageStrike in schema fpml-fx-accruals-5-10_xsd Drilldown into counterCurrencyAmount in schema fpml-fx-accruals-5-10_xsd Drilldown into strike in schema fpml-fx-accruals-5-10_xsd Drilldown into exchangedCurrency2 in schema fpml-fx-targets-5-10_xsd Drilldown into exchangedCurrency1 in schema fpml-fx-targets-5-10_xsd Drilldown into FxExchangedCurrency.model in schema fpml-fx-targets-5-10_xsd Drilldown into id in schema fpml-fx-accruals-5-10_xsd Drilldown into FxAccrualPayoffRegion in schema fpml-fx-accruals-5-10_xsdXSD Diagram of FxAccrualLinearPayoffRegion in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxAccrualLinearPayoffRegion">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A fixing region in which the payoff varies linearly with the fixing value.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxAccrualPayoffRegion">
            <xsd:sequence>
                <xsd:group ref="FxExchangedCurrency.model" />
                <xsd:choice>
                    <xsd:sequence>
                        <xsd:element name="strike" type="FxForwardStrikePrice">
                            <xsd:annotation>
                                <xsd:documentation xml:lang="en">The rate of exchange between the two currencies.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element name="counterCurrencyAmount" type="NonNegativeAmountSchedule" minOccurs="0">
                            <xsd:annotation>
                                <xsd:documentation xml:lang="en">The opposite currency amount. The counterCurrencyAmount element is only optional if averageStrike component is present or if the accrualRegion specifies the amount of counterCurrencyAmount to accrue, in all other cases this element must be populated.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                    </xsd:sequence>
                    <xsd:element name="averageStrike" type="FxAverageStrike">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">Average Strike Forward: means the average of the Reference Spot Rate on each Business Day from and including the Calculation Start Date up to and including the Calculation End Date rounded to the precision decimal places.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:choice>
                <xsd:group ref="FxAccrualRegionBound.model" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the boundaries of the accrual region.</xsd:documentation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:element name="leverage" type="FxAccrualLeverage" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">These structures define a leverage multiplier to the payoff amounts at settlement points.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="payoffCap" type="FxPayoffCap" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The amount of gain on the client upside or firm upside is limited. If spot settles above the cap, or below the floor, the payout is adjusted to limit the gain. The adjustment may be made by varying the strike, or by maintaining the strike, but varying the payout notionals.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exchangedCurrency1 nsA:exchangedCurrency1 (1) (1)
exchangedCurrency2 nsA:exchangedCurrency2 (1) (1)
strike nsA:strike (1) (1)
counterCurrencyAmount nsA:counterCurrencyAmount 0 (1)
averageStrike nsA:averageStrike (1) (1)
upperBound nsA:upperBound (1) (1)
lowerBound nsA:lowerBound (1) (1)
upperBound nsA:upperBound 0 (1)
leverage nsA:leverage 0 (1)
payoffCap nsA:payoffCap 0 unbounded
<xs:group> nsA:FxExchangedCurrency.model (1) (1)
<xs:group> nsA:FxAccrualRegionBound.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:linearPayoffRegion
