Docs for schema item leverage in Financial products Markup Language (FpML®)

Documentation for Financial products Markup Language (FpML®)

Definition Type:	Element
Name:	leverage
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxAccrualLeverage
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract
Documentation:	These structures define a leverage multiplier to the payoff amounts at settlement points.

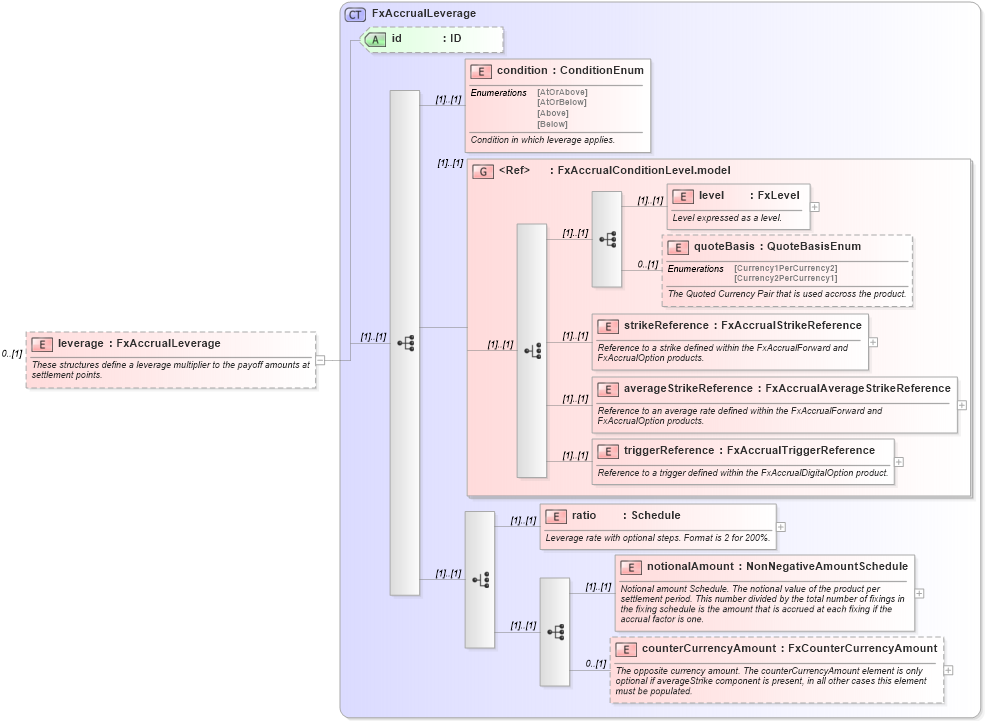

XSD Schema Diagram:

XSD Diagram of leverage in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="leverage" type="FxAccrualLeverage" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">These structures define a leverage multiplier to the payoff amounts at settlement points.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
condition	nsA:condition	(1)	(1)
level	nsA:level	(1)	(1)
quoteBasis	nsA:quoteBasis	0	(1)
strikeReference	nsA:strikeReference	(1)	(1)
averageStrikeReference	nsA:averageStrikeReference	(1)	(1)
triggerReference	nsA:triggerReference	(1)	(1)
ratio	nsA:ratio	(1)	(1)
notionalAmount	nsA:notionalAmount	(1)	(1)
counterCurrencyAmount	nsA:counterCurrencyAmount	0	(1)
<xs:group>	nsA:FxAccrualConditionLevel.model	(1)	(1)

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		(Optional)

Derivation Tree:
	nsA:FxAccrualLeverage *leverage*
