Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxCurve
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxCurve
Containing Schema: fpml-mktenv-5-10.xsd
Abstract

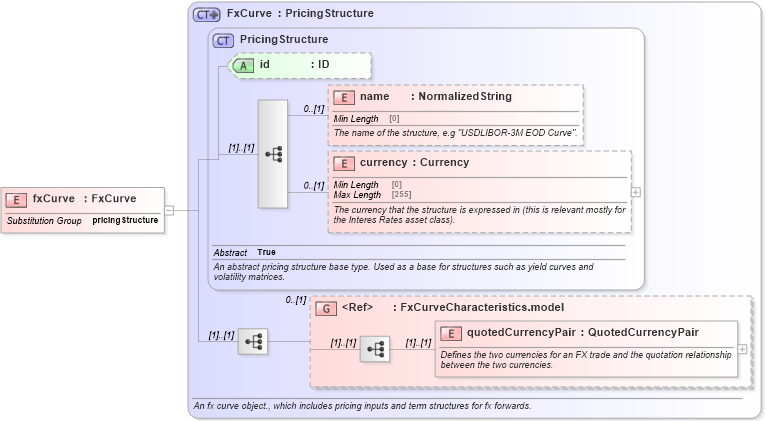

Collapse XSD Schema Diagram:
Drilldown into quotedCurrencyPair in schema fpml-mktenv-5-10_xsd Drilldown into FxCurveCharacteristics.model in schema fpml-mktenv-5-10_xsd Drilldown into currency in schema fpml-shared-5-10_xsd Drilldown into name in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into PricingStructure in schema fpml-shared-5-10_xsd Drilldown into FxCurve in schema fpml-mktenv-5-10_xsdXSD Diagram of fxCurve in schema fpml-mktenv-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxCurve" type="FxCurve" substitutionGroup="pricingStructure" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 (1)
currency nsA:currency 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
<xs:group> nsA:FxCurveCharacteristics.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:pricingStructure
