Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxExpirySchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxSchedule
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
Defines the expiry/observation schedule of the target.

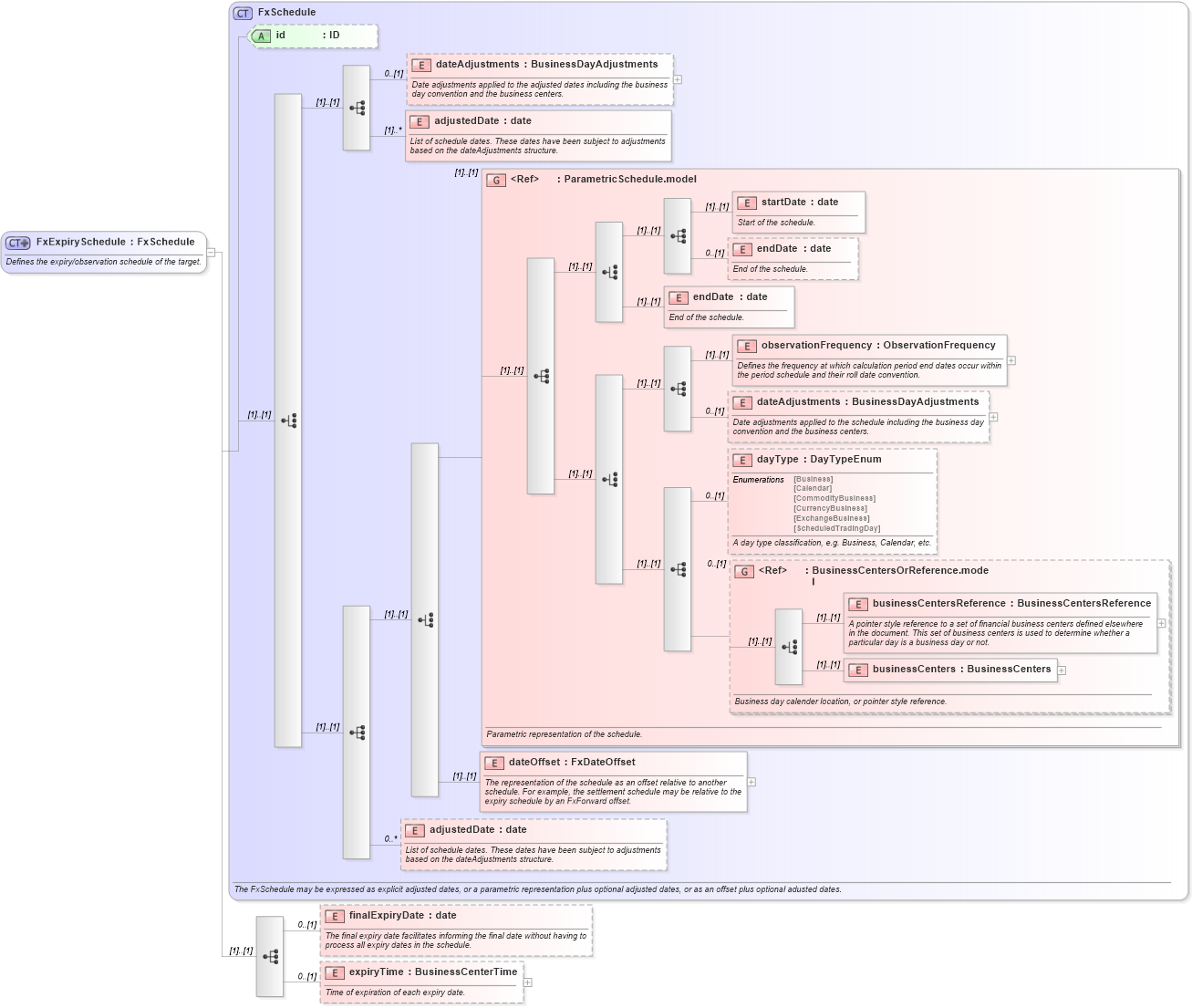

Collapse XSD Schema Diagram:
Drilldown into expiryTime in schema fpml-fx-targets-5-10_xsd2 Drilldown into finalExpiryDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into dateOffset in schema fpml-fx-targets-5-10_xsd2 Drilldown into businessCenters in schema fpml-shared-5-10_xsd4 Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd4 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd4 Drilldown into dayType in schema fpml-fx-targets-5-10_xsd2 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd2 Drilldown into observationFrequency in schema fpml-fx-targets-5-10_xsd2 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into startDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into ParametricSchedule.model in schema fpml-fx-targets-5-10_xsd2 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd2 Drilldown into id in schema fpml-fx-targets-5-10_xsd2 Drilldown into FxSchedule in schema fpml-fx-targets-5-10_xsd2XSD Diagram of FxExpirySchedule in schema fpml-fx-targets-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxExpirySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the expiry/observation schedule of the target.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="FxSchedule">
            <xsd:sequence>
                <xsd:element name="finalExpiryDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The final expiry date facilitates informing the final date without having to process all expiry dates in the schedule.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryTime" type="BusinessCenterTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Time of expiration of each expiry date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dateAdjustments nsE:dateAdjustments 0 (1)
adjustedDate nsE:adjustedDate (1) unbounded
startDate nsE:startDate (1) (1)
endDate nsE:endDate 0 (1)
endDate nsE:endDate (1) (1)
observationFrequency nsE:observationFrequency (1) (1)
dateAdjustments nsE:dateAdjustments 0 (1)
dayType nsE:dayType 0 (1)
businessCentersReference nsE:businessCentersReference (1) (1)
businessCenters nsE:businessCenters (1) (1)
dateOffset nsE:dateOffset (1) (1)
adjustedDate nsE:adjustedDate 0 unbounded
finalExpiryDate nsE:finalExpiryDate 0 (1)
expiryTime nsE:expiryTime 0 (1)
<xs:group> nsE:ParametricSchedule.model (1) (1)
<xs:group> nsE:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:expirySchedule, nsE:expirySchedule
