Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxForwardVolatilityAgreement
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:FxForwardVolatilityAgreement
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
An FX Forward Volatility Agreement transaction definition.

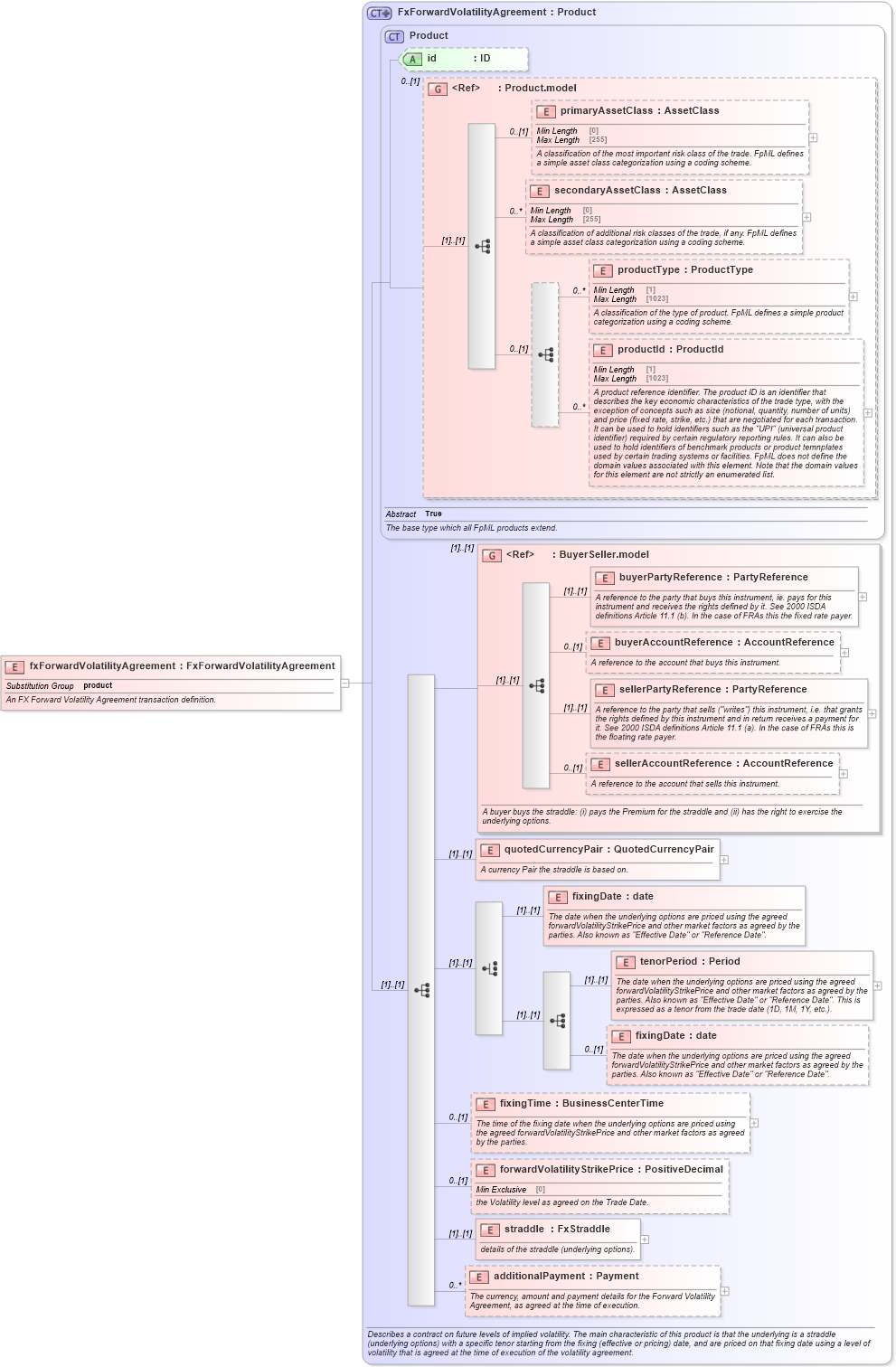

Collapse XSD Schema Diagram:
Drilldown into additionalPayment in schema fpml-fx-5-10_xsd1 Drilldown into straddle in schema fpml-fx-5-10_xsd1 Drilldown into forwardVolatilityStrikePrice in schema fpml-fx-5-10_xsd1 Drilldown into fixingTime in schema fpml-fx-5-10_xsd1 Drilldown into fixingDate in schema fpml-fx-5-10_xsd1 Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd1 Drilldown into fixingDate in schema fpml-fx-5-10_xsd1 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd1 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd2 Drilldown into productId in schema fpml-shared-5-10_xsd2 Drilldown into productType in schema fpml-shared-5-10_xsd2 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd2 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd2 Drilldown into Product.model in schema fpml-shared-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd2 Drilldown into Product in schema fpml-shared-5-10_xsd2 Drilldown into FxForwardVolatilityAgreement in schema fpml-fx-5-10_xsd1XSD Diagram of fxForwardVolatilityAgreement in schema fpml-fx-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxForwardVolatilityAgreement" type="FxForwardVolatilityAgreement" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An FX Forward Volatility Agreement transaction definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsC:primaryAssetClass 0 (1)
secondaryAssetClass nsC:secondaryAssetClass 0 unbounded
productType nsC:productType 0 unbounded
productId nsC:productId 0 unbounded
buyerPartyReference nsC:buyerPartyReference (1) (1)
buyerAccountReference nsC:buyerAccountReference 0 (1)
sellerPartyReference nsC:sellerPartyReference (1) (1)
sellerAccountReference nsC:sellerAccountReference 0 (1)
quotedCurrencyPair nsC:quotedCurrencyPair (1) (1)
fixingDate nsC:fixingDate (1) (1)
tenorPeriod nsC:tenorPeriod (1) (1)
fixingDate nsC:fixingDate 0 (1)
fixingTime nsC:fixingTime 0 (1)
forwardVolatilityStrikePrice nsC:forwardVolatilityStrikePrice 0 (1)
straddle nsC:straddle (1) (1)
additionalPayment nsC:additionalPayment 0 unbounded
<xs:group> nsC:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:product
