Definition Type: Element
Name: fxForwardVolatilityAgreement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxForwardVolatilityAgreement
Containing Schema: fpml-fx-5-10.xsd
Abstract
Documentation:
An FX Forward Volatility Agreement transaction definition.

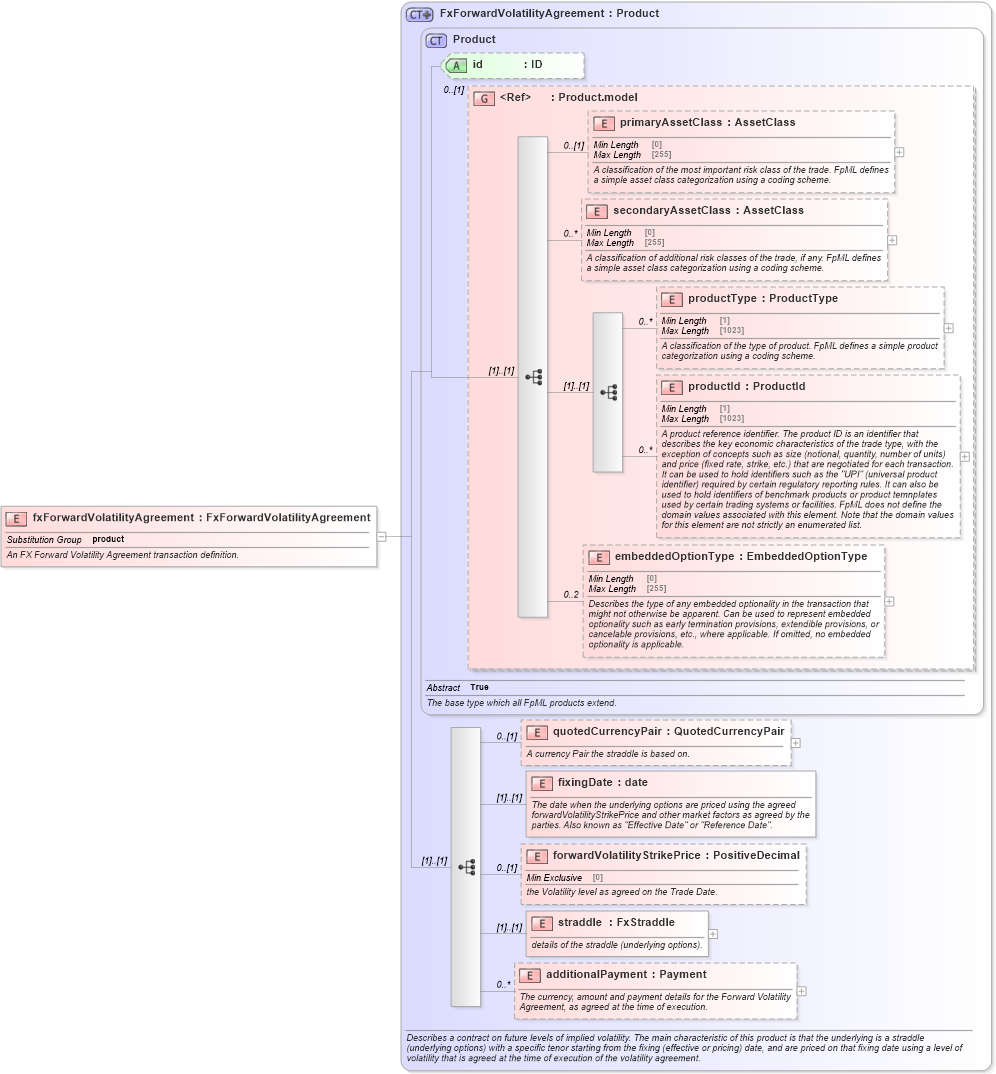

Collapse XSD Schema Diagram:
Drilldown into additionalPayment in schema fpml-fx-5-10_xsd4 Drilldown into straddle in schema fpml-fx-5-10_xsd4 Drilldown into forwardVolatilityStrikePrice in schema fpml-fx-5-10_xsd4 Drilldown into fixingDate in schema fpml-fx-5-10_xsd4 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd4 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into FxForwardVolatilityAgreement in schema fpml-fx-5-10_xsd4XSD Diagram of fxForwardVolatilityAgreement in schema fpml-fx-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxForwardVolatilityAgreement" type="FxForwardVolatilityAgreement" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An FX Forward Volatility Agreement transaction definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
quotedCurrencyPair nsF:quotedCurrencyPair 0 (1)
fixingDate nsF:fixingDate (1) (1)
forwardVolatilityStrikePrice nsF:forwardVolatilityStrikePrice 0 (1)
straddle nsF:straddle (1) (1)
additionalPayment nsF:additionalPayment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:product
