Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxTargetConstantPayoff
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract

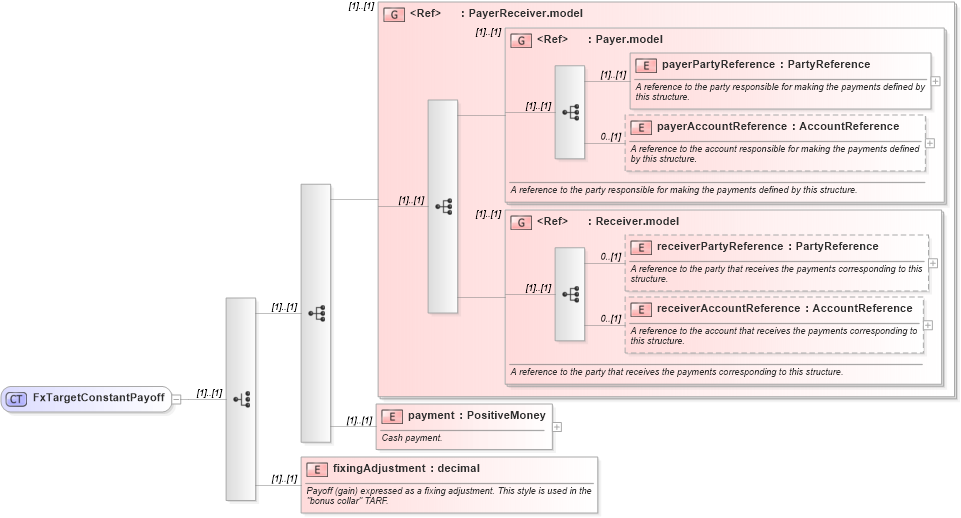

Collapse XSD Schema Diagram:
Drilldown into fixingAdjustment in schema fpml-fx-targets-5-10_xsd1 Drilldown into payment in schema fpml-fx-targets-5-10_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd3 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Payer.model in schema fpml-shared-5-10_xsd3 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd3XSD Diagram of FxTargetConstantPayoff in schema fpml-fx-targets-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxTargetConstantPayoff">
    <xsd:choice>
        <xsd:sequence>
            <xsd:group ref="PayerReceiver.model" />
            <xsd:element name="payment" type="PositiveMoney">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Cash payment.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
        <xsd:element name="fixingAdjustment" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Payoff (gain) expressed as a fixing adjustment. This style is used in the "bonus collar" TARF.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsD:payerPartyReference (1) (1)
payerAccountReference nsD:payerAccountReference 0 (1)
receiverPartyReference nsD:receiverPartyReference 0 (1)
receiverAccountReference nsD:receiverAccountReference 0 (1)
payment nsD:payment (1) (1)
fixingAdjustment nsD:fixingAdjustment (1) (1)
<xs:group> nsD:PayerReceiver.model (1) (1)
<xs:group> nsD:Payer.model (1) (1)
<xs:group> nsD:Receiver.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsD:payoff
