Definition Type: Element
Name: fxTargetKnockoutForward
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxTargetKnockoutForward
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.

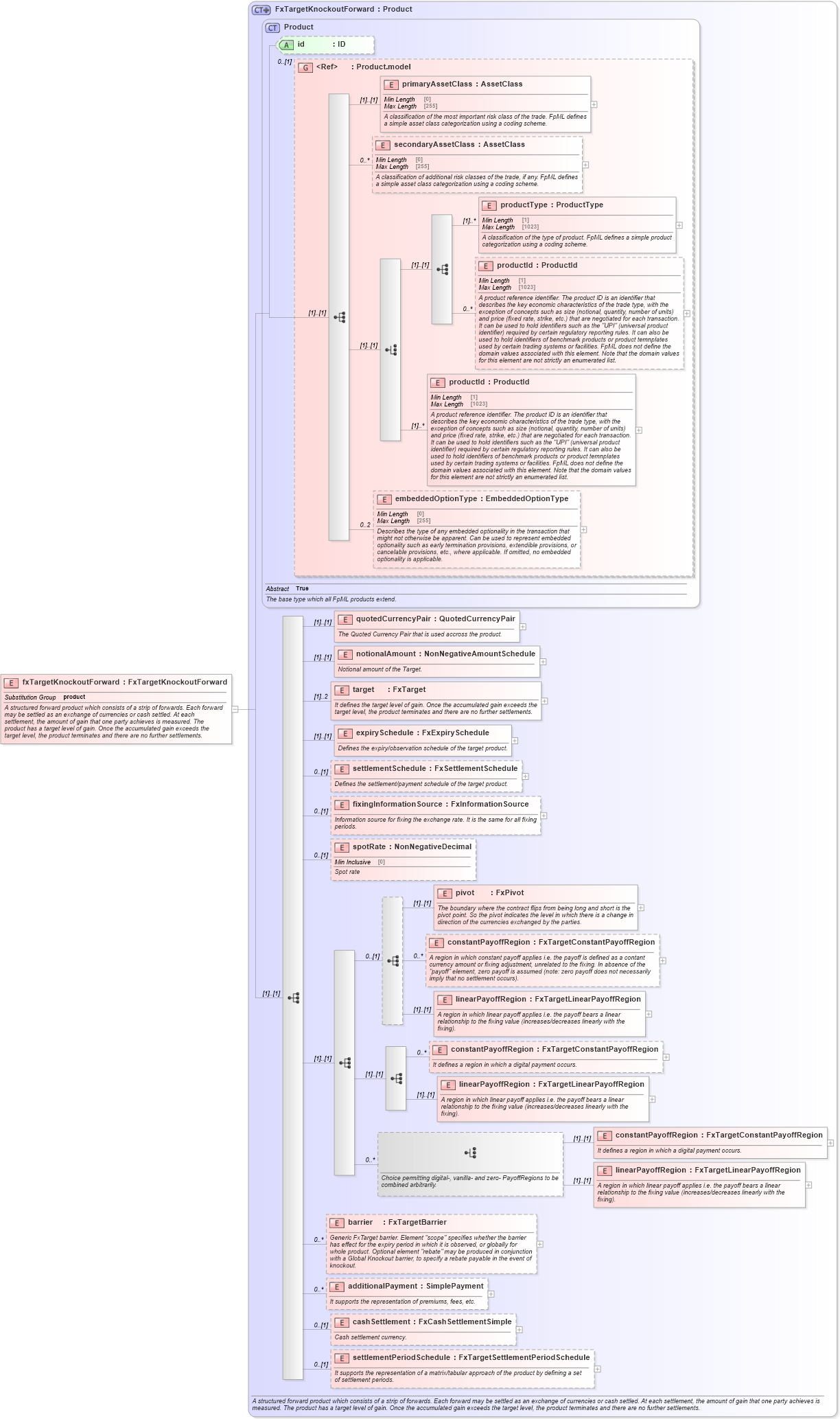

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodSchedule in schema fpml-fx-targets-5-10_xsd1 Drilldown into cashSettlement in schema fpml-fx-targets-5-10_xsd1 Drilldown into additionalPayment in schema fpml-fx-targets-5-10_xsd1 Drilldown into barrier in schema fpml-fx-targets-5-10_xsd1 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd1 Drilldown into pivot in schema fpml-fx-targets-5-10_xsd1 Drilldown into spotRate in schema fpml-fx-targets-5-10_xsd1 Drilldown into fixingInformationSource in schema fpml-fx-targets-5-10_xsd1 Drilldown into settlementSchedule in schema fpml-fx-targets-5-10_xsd1 Drilldown into expirySchedule in schema fpml-fx-targets-5-10_xsd1 Drilldown into target in schema fpml-fx-targets-5-10_xsd1 Drilldown into notionalAmount in schema fpml-fx-targets-5-10_xsd1 Drilldown into quotedCurrencyPair in schema fpml-fx-targets-5-10_xsd1 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3 Drilldown into FxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsd1XSD Diagram of fxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxTargetKnockoutForward" type="FxTargetKnockoutForward" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
quotedCurrencyPair nsD:quotedCurrencyPair (1) (1)
notionalAmount nsD:notionalAmount (1) (1)
target nsD:target (1) 2
expirySchedule nsD:expirySchedule (1) (1)
settlementSchedule nsD:settlementSchedule 0 (1)
fixingInformationSource nsD:fixingInformationSource 0 (1)
spotRate nsD:spotRate 0 (1)
pivot nsD:pivot (1) (1)
constantPayoffRegion nsD:constantPayoffRegion 0 unbounded
linearPayoffRegion nsD:linearPayoffRegion (1) (1)
constantPayoffRegion nsD:constantPayoffRegion 0 unbounded
linearPayoffRegion nsD:linearPayoffRegion (1) (1)
constantPayoffRegion nsD:constantPayoffRegion (1) (1)
linearPayoffRegion nsD:linearPayoffRegion (1) (1)
barrier nsD:barrier 0 unbounded
additionalPayment nsD:additionalPayment 0 unbounded
cashSettlement nsD:cashSettlement 0 (1)
settlementPeriodSchedule nsD:settlementPeriodSchedule 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:product
