Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: fxTargetKnockoutForward
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxTargetKnockoutForward
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract
Documentation:
A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.

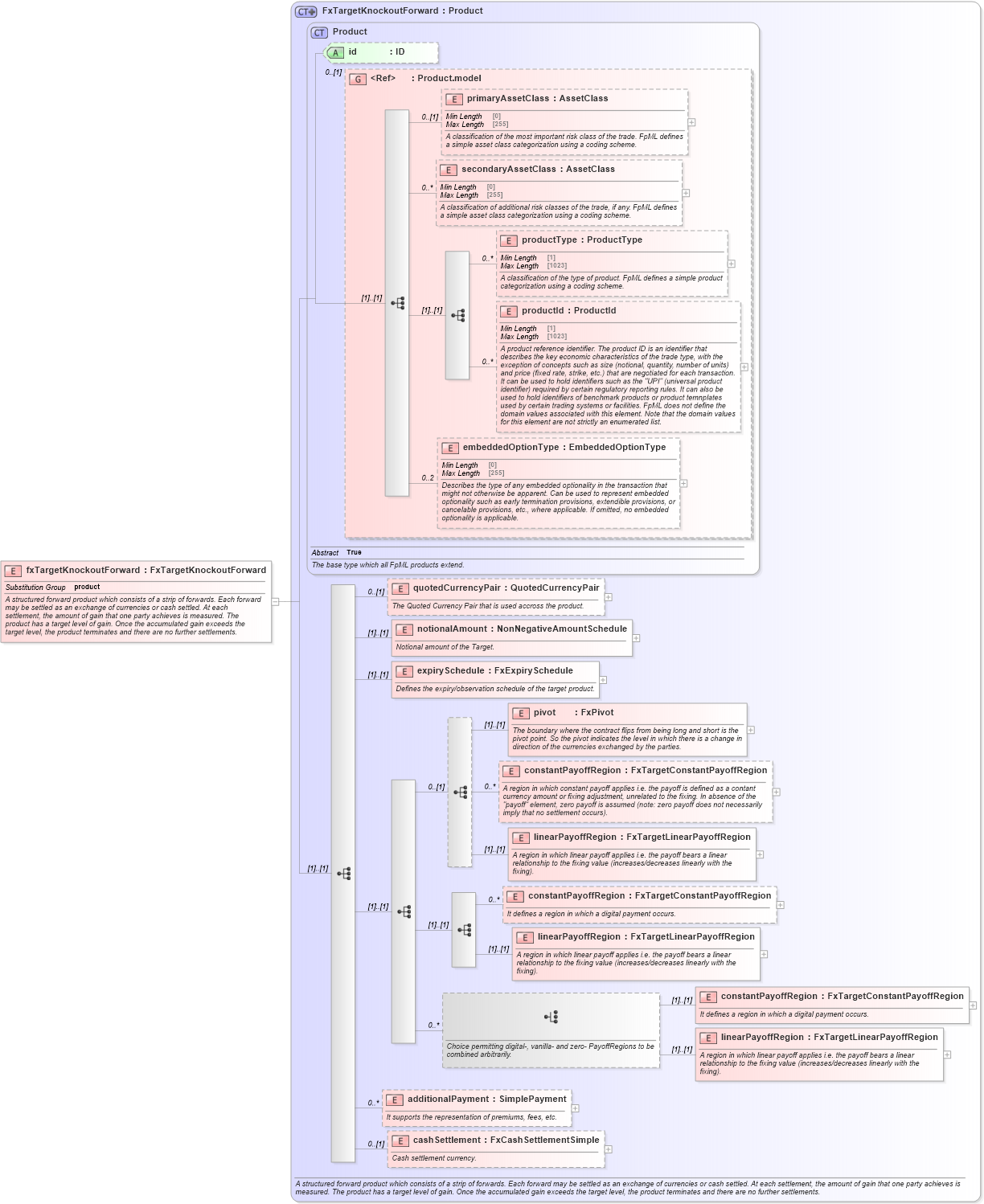

Collapse XSD Schema Diagram:
Drilldown into cashSettlement in schema fpml-fx-targets-5-10_xsd3 Drilldown into additionalPayment in schema fpml-fx-targets-5-10_xsd3 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into linearPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into constantPayoffRegion in schema fpml-fx-targets-5-10_xsd3 Drilldown into pivot in schema fpml-fx-targets-5-10_xsd3 Drilldown into expirySchedule in schema fpml-fx-targets-5-10_xsd3 Drilldown into notionalAmount in schema fpml-fx-targets-5-10_xsd3 Drilldown into quotedCurrencyPair in schema fpml-fx-targets-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into FxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsd3XSD Diagram of fxTargetKnockoutForward in schema fpml-fx-targets-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="fxTargetKnockoutForward" type="FxTargetKnockoutForward" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structured forward product which consists of a strip of forwards. Each forward may be settled as an exchange of currencies or cash settled. At each settlement, the amount of gain that one party achieves is measured. The product has a target level of gain. Once the accumulated gain exceeds the target level, the product terminates and there are no further settlements.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
quotedCurrencyPair nsF:quotedCurrencyPair 0 (1)
notionalAmount nsF:notionalAmount (1) (1)
expirySchedule nsF:expirySchedule (1) (1)
pivot nsF:pivot (1) (1)
constantPayoffRegion nsF:constantPayoffRegion 0 unbounded
linearPayoffRegion nsF:linearPayoffRegion (1) (1)
constantPayoffRegion nsF:constantPayoffRegion 0 unbounded
linearPayoffRegion nsF:linearPayoffRegion (1) (1)
constantPayoffRegion nsF:constantPayoffRegion (1) (1)
linearPayoffRegion nsF:linearPayoffRegion (1) (1)
additionalPayment nsF:additionalPayment 0 unbounded
cashSettlement nsF:cashSettlement 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:product
