Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: nearLeg
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxSwapLeg
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The FX transaction with the earliest value date.

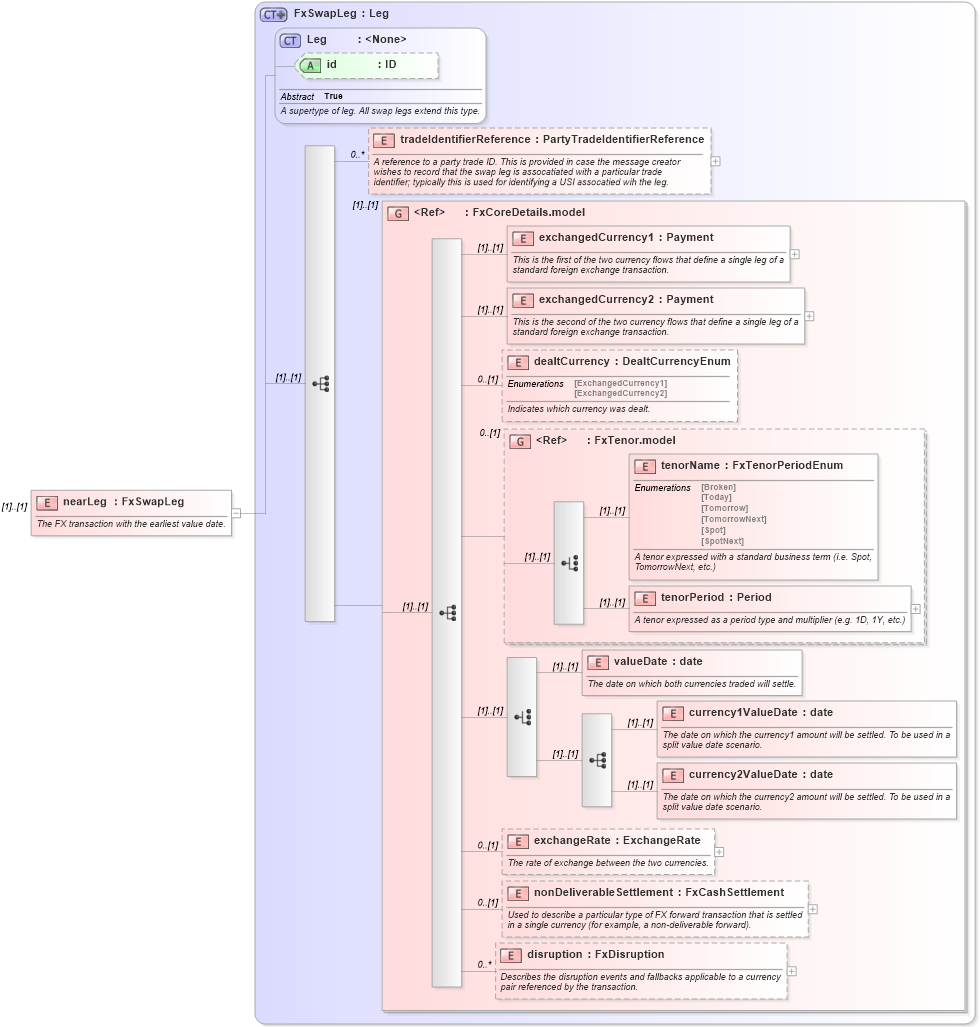

Collapse XSD Schema Diagram:
Drilldown into disruption in schema fpml-fx-5-10_xsd2 Drilldown into nonDeliverableSettlement in schema fpml-fx-5-10_xsd2 Drilldown into exchangeRate in schema fpml-fx-5-10_xsd2 Drilldown into currency2ValueDate in schema fpml-fx-5-10_xsd2 Drilldown into currency1ValueDate in schema fpml-fx-5-10_xsd2 Drilldown into valueDate in schema fpml-fx-5-10_xsd2 Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd2 Drilldown into tenorName in schema fpml-fx-5-10_xsd2 Drilldown into FxTenor.model in schema fpml-fx-5-10_xsd2 Drilldown into dealtCurrency in schema fpml-fx-5-10_xsd2 Drilldown into exchangedCurrency2 in schema fpml-fx-5-10_xsd2 Drilldown into exchangedCurrency1 in schema fpml-fx-5-10_xsd2 Drilldown into FxCoreDetails.model in schema fpml-fx-5-10_xsd2 Drilldown into tradeIdentifierReference in schema fpml-fx-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Leg in schema fpml-shared-5-10_xsd3 Drilldown into FxSwapLeg in schema fpml-fx-5-10_xsd2XSD Diagram of nearLeg in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="nearLeg" type="FxSwapLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The FX transaction with the earliest value date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeIdentifierReference nsD:tradeIdentifierReference 0 unbounded
exchangedCurrency1 nsD:exchangedCurrency1 (1) (1)
exchangedCurrency2 nsD:exchangedCurrency2 (1) (1)
dealtCurrency nsD:dealtCurrency 0 (1)
tenorName nsD:tenorName (1) (1)
tenorPeriod nsD:tenorPeriod (1) (1)
valueDate nsD:valueDate (1) (1)
currency1ValueDate nsD:currency1ValueDate (1) (1)
currency2ValueDate nsD:currency2ValueDate (1) (1)
exchangeRate nsD:exchangeRate 0 (1)
nonDeliverableSettlement nsD:nonDeliverableSettlement 0 (1)
disruption nsD:disruption 0 unbounded
<xs:group> nsD:FxCoreDetails.model (1) (1)
<xs:group> nsD:FxTenor.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
