Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: NonNegativeAmountSchedule
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:NonNegativeSchedule
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type defining a currency amount or a currency amount schedule.

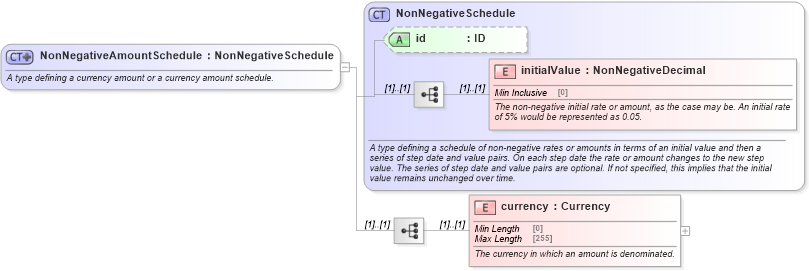

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd5 Drilldown into initialValue in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd5XSD Diagram of NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="NonNegativeAmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a currency amount or a currency amount schedule.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NonNegativeSchedule">
            <xsd:sequence>
                <xsd:element name="currency" type="Currency">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The currency in which an amount is denominated.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsF:initialValue (1) (1)
currency nsF:currency (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:changeInNotionalSchedule, nsF:notionalAmount, nsF:notionalAmount, nsF:notionalAmount, nsF:notionalAmount, nsF:notionalAmount, nsF:notionalStepSchedulensF:outstandingNotionalSchedule,
