Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalAmount
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:NonNegativeAmountSchedule
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Notional amount Schedule. The notional value of the product. This number divided by the total number of fixings in the fixing schedule is the amount that is accrued at each fixing if the accrual factor is one.

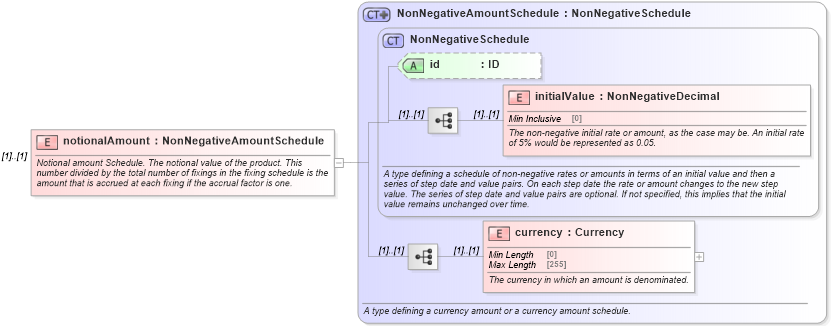

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd5 Drilldown into initialValue in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into NonNegativeSchedule in schema fpml-shared-5-10_xsd5 Drilldown into NonNegativeAmountSchedule in schema fpml-shared-5-10_xsd5XSD Diagram of notionalAmount in schema fpml-fx-accruals-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalAmount" type="NonNegativeAmountSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Notional amount Schedule. The notional value of the product. This number divided by the total number of fixings in the fixing schedule is the amount that is accrued at each fixing if the accrual factor is one.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsF:initialValue (1) (1)
currency nsF:currency (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
