Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: OptionBaseExtended
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:OptionBase
Containing Schema: fpml-option-shared-5-10.xsd
Abstract True
Documentation:
Base type for options starting with the 4-3 release, until we refactor the schema as part of the 5-0 release series.

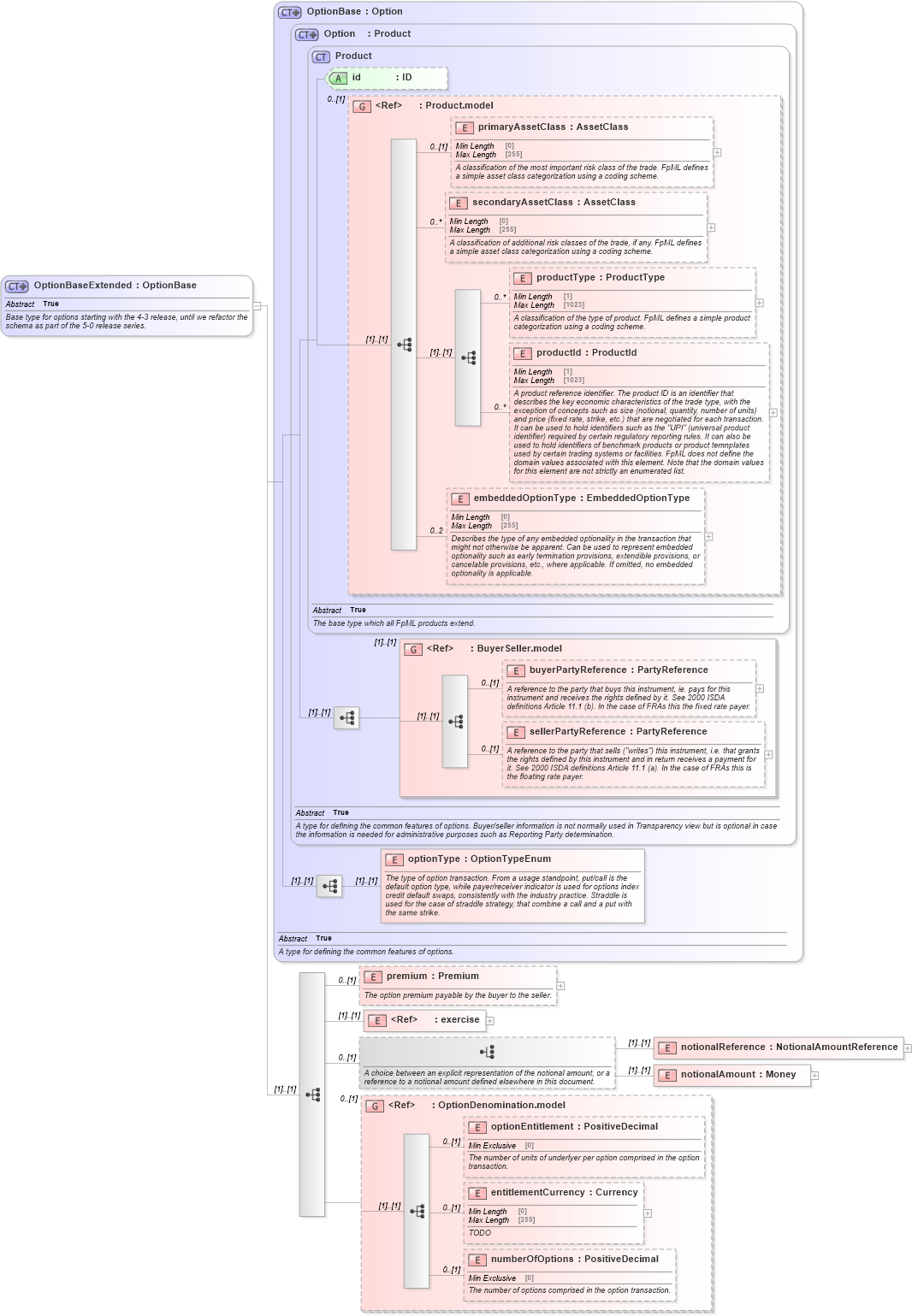

Collapse XSD Schema Diagram:
Drilldown into numberOfOptions in schema fpml-option-shared-5-10_xsd4 Drilldown into entitlementCurrency in schema fpml-option-shared-5-10_xsd4 Drilldown into optionEntitlement in schema fpml-option-shared-5-10_xsd4 Drilldown into OptionDenomination.model in schema fpml-option-shared-5-10_xsd4 Drilldown into notionalAmount in schema fpml-option-shared-5-10_xsd4 Drilldown into notionalReference in schema fpml-option-shared-5-10_xsd4 Drilldown into exercise in schema fpml-shared-5-10_xsd5 Drilldown into premium in schema fpml-option-shared-5-10_xsd4 Drilldown into optionType in schema fpml-option-shared-5-10_xsd4 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd5 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd5 Drilldown into productId in schema fpml-shared-5-10_xsd5 Drilldown into productType in schema fpml-shared-5-10_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd5 Drilldown into Product.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Product in schema fpml-shared-5-10_xsd5 Drilldown into Option in schema fpml-option-shared-5-10_xsd4 Drilldown into OptionBase in schema fpml-option-shared-5-10_xsd4XSD Diagram of OptionBaseExtended in schema fpml-option-shared-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="OptionBaseExtended" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Base type for options starting with the 4-3 release, until we refactor the schema as part of the 5-0 release series.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="OptionBase">
            <xsd:sequence>
                <xsd:element name="premium" type="Premium" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The option premium payable by the buyer to the seller.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="exercise" />
                <xsd:choice minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A choice between an explicit representation of the notional amount, or a reference to a notional amount defined elsewhere in this document.</xsd:documentation>
                    </xsd:annotation>
                    <xsd:element name="notionalReference" type="NotionalAmountReference" />
                    <xsd:element name="notionalAmount" type="Money" />
                </xsd:choice>
                <xsd:group ref="OptionDenomination.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
buyerPartyReference nsF:buyerPartyReference 0 (1)
sellerPartyReference nsF:sellerPartyReference 0 (1)
optionType nsF:optionType (1) (1)
premium nsF:premium 0 (1)
exercise nsF:exercise (1) (1)
notionalReference nsF:notionalReference (1) (1)
notionalAmount nsF:notionalAmount (1) (1)
optionEntitlement nsF:optionEntitlement 0 (1)
entitlementCurrency nsF:entitlementCurrency 0 (1)
numberOfOptions nsF:numberOfOptions 0 (1)
<xs:group> nsF:BuyerSeller.model (1) (1)
<xs:group> nsF:OptionDenomination.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:BondOption, nsF:CreditDefaultSwapOption
