Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: partyTradeIdentifier
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:PartyTradeIdentifier
Containing Schema: fpml-msg-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

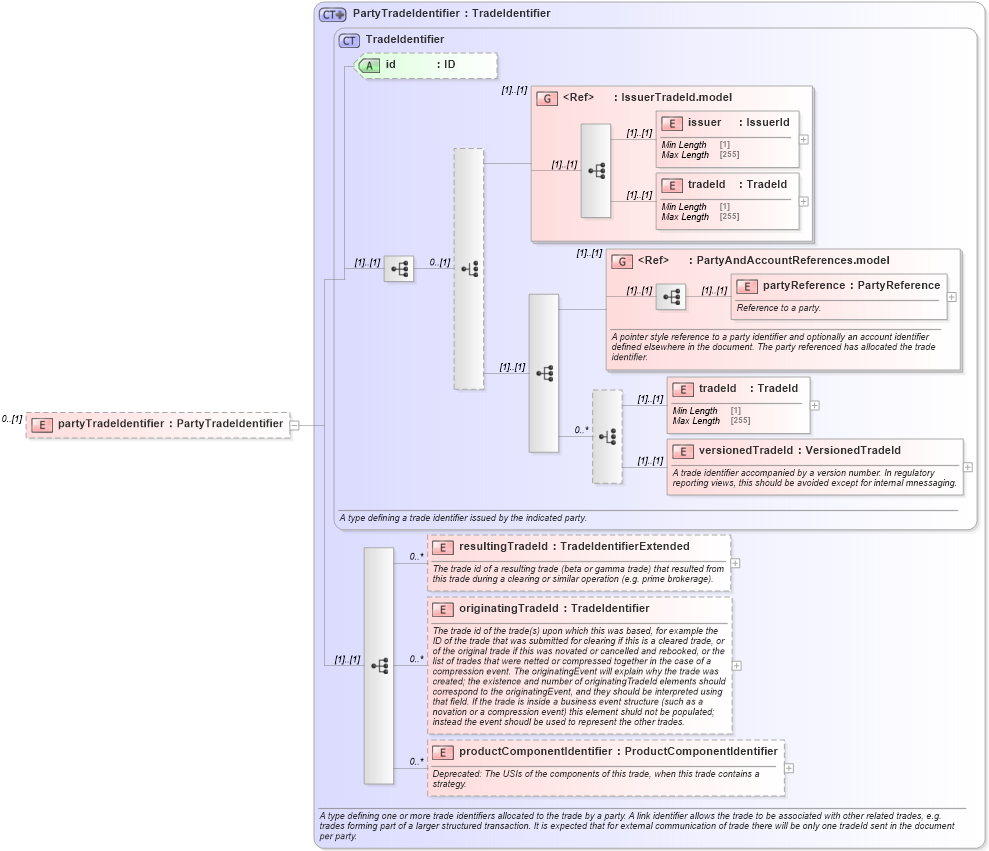

Collapse XSD Schema Diagram:
Drilldown into productComponentIdentifier in schema fpml-doc-5-10_xsd5 Drilldown into originatingTradeId in schema fpml-doc-5-10_xsd5 Drilldown into resultingTradeId in schema fpml-doc-5-10_xsd5 Drilldown into versionedTradeId in schema fpml-doc-5-10_xsd5 Drilldown into tradeId in schema fpml-doc-5-10_xsd5 Drilldown into partyReference in schema fpml-shared-5-10_xsd5 Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd5 Drilldown into tradeId in schema fpml-shared-5-10_xsd5 Drilldown into issuer in schema fpml-shared-5-10_xsd5 Drilldown into IssuerTradeId.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-doc-5-10_xsd5 Drilldown into TradeIdentifier in schema fpml-doc-5-10_xsd5 Drilldown into PartyTradeIdentifier in schema fpml-doc-5-10_xsd5XSD Diagram of partyTradeIdentifier in schema fpml-msg-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="partyTradeIdentifier" type="PartyTradeIdentifier" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
issuer nsF:issuer (1) (1)
tradeId nsF:tradeId (1) (1)
partyReference nsF:partyReference (1) (1)
tradeId nsF:tradeId (1) (1)
versionedTradeId nsF:versionedTradeId (1) (1)
resultingTradeId nsF:resultingTradeId 0 unbounded
originatingTradeId nsF:originatingTradeId 0 unbounded
productComponentIdentifier nsF:productComponentIdentifier 0 unbounded
<xs:group> nsF:IssuerTradeId.model (1) (1)
<xs:group> nsF:PartyAndAccountReferences.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
