<xsd:complexType name="Price">
<xsd:annotation>
<xsd:documentation xml:lang="en">A type describing the strike price.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="commission" type="Commission" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">This optional component specifies the commission to be charged for executing the hedge transactions.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:choice minOccurs="0">
<xsd:sequence>
<xsd:element name="determinationMethod" type="DeterminationMethod">
<xsd:annotation>
<xsd:documentation xml:lang="en">Specifies the method according to which an amount or a date is determined.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:group ref="EquityPrice.model" minOccurs="0">
</xsd:group>
</xsd:sequence>
<xsd:element name="amountRelativeTo" type="AmountReference">
<xsd:annotation>
<xsd:documentation xml:lang="en">The href attribute value will be a pointer style reference to the element or component elsewhere in the document where the anchor amount is defined.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:group ref="EquityPrice.model" />
</xsd:choice>
<xsd:element name="cleanNetPrice" type="xsd:decimal" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">The net price excluding accrued interest. The "Dirty Price" for bonds is put in the "netPrice" element, which includes accrued interest. Thus netPrice - cleanNetPrice = accruedInterest. The currency and price expression for this field are the same as those for the (dirty) netPrice.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="quotationCharacteristics" type="QuotationCharacteristics" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="en">Allows information about how the price was quoted to be provided.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

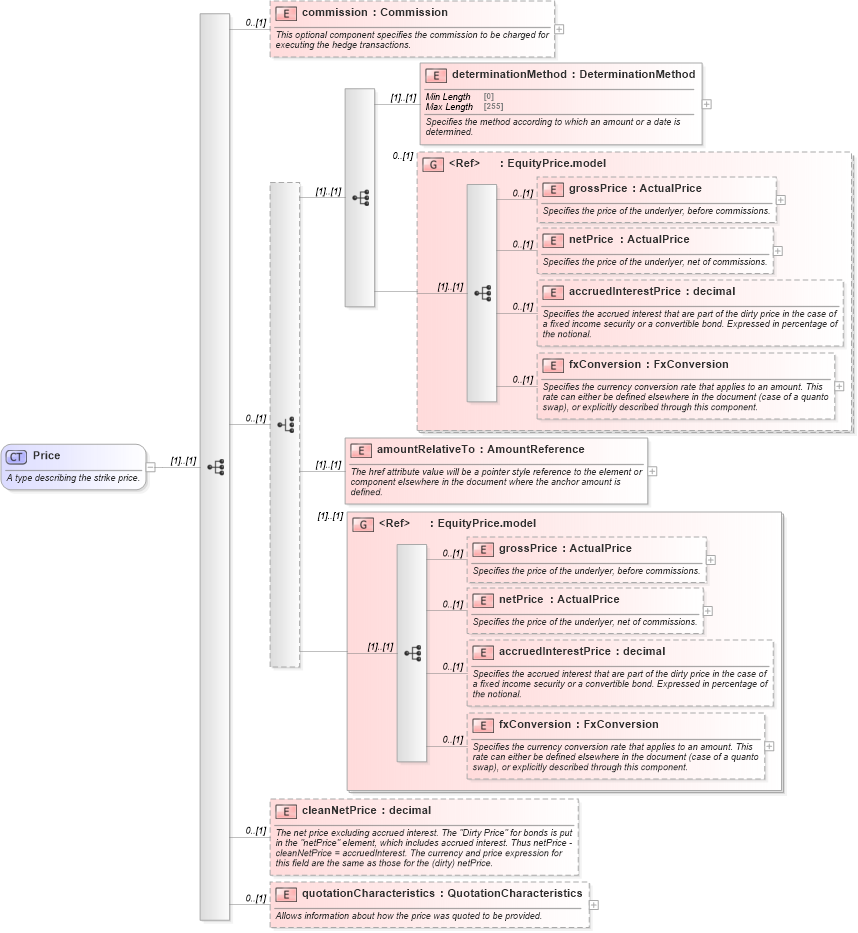

XSD Schema Diagram:
