Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: quotationCharacteristics
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:QuotationCharacteristics
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Allows information about how the price was quoted to be provided.

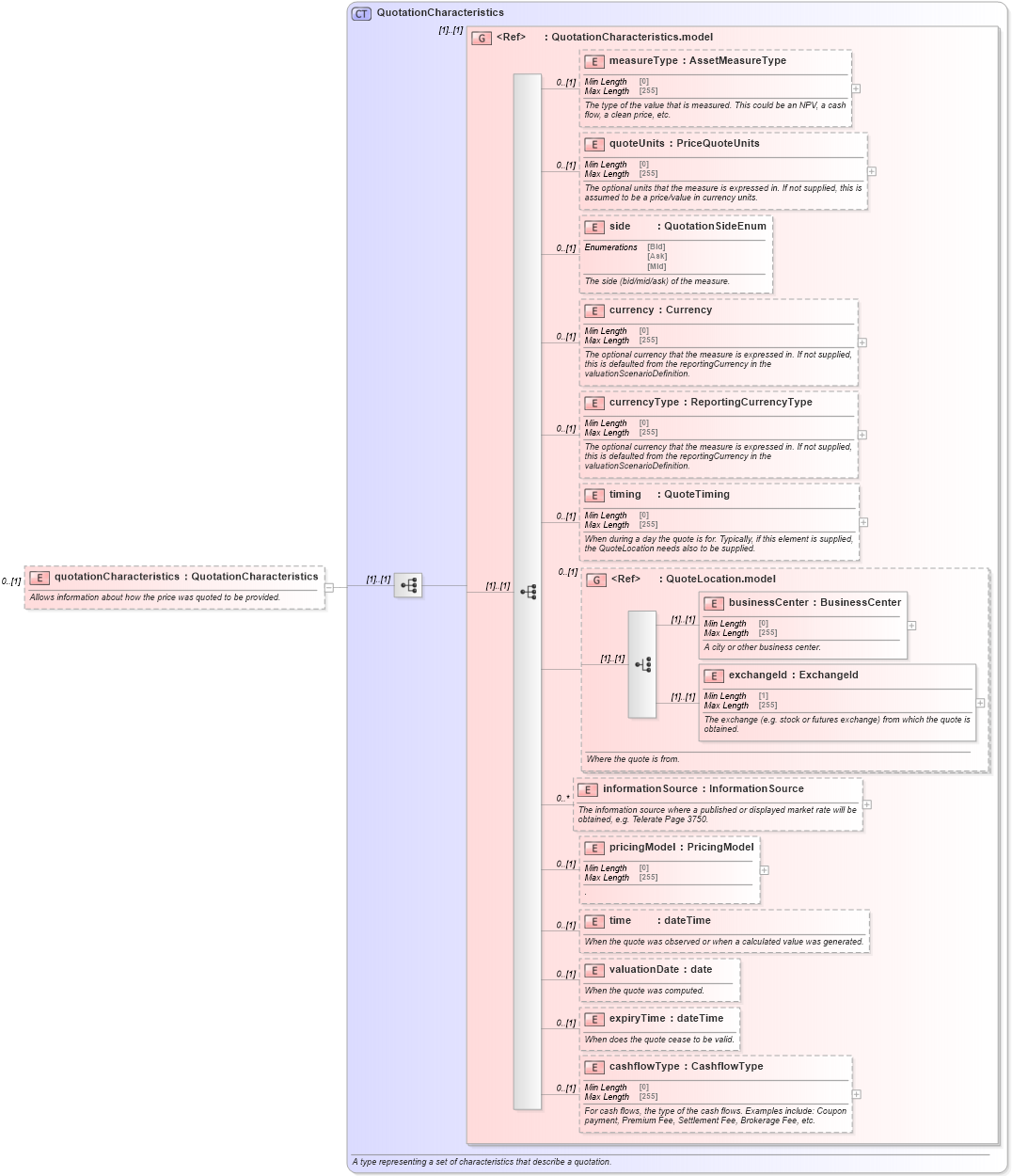

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd5 Drilldown into expiryTime in schema fpml-asset-5-10_xsd5 Drilldown into valuationDate in schema fpml-asset-5-10_xsd5 Drilldown into time in schema fpml-asset-5-10_xsd5 Drilldown into pricingModel in schema fpml-asset-5-10_xsd5 Drilldown into informationSource in schema fpml-asset-5-10_xsd5 Drilldown into exchangeId in schema fpml-asset-5-10_xsd5 Drilldown into businessCenter in schema fpml-asset-5-10_xsd5 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd5 Drilldown into timing in schema fpml-asset-5-10_xsd5 Drilldown into currencyType in schema fpml-asset-5-10_xsd5 Drilldown into currency in schema fpml-asset-5-10_xsd5 Drilldown into side in schema fpml-asset-5-10_xsd5 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd5 Drilldown into measureType in schema fpml-asset-5-10_xsd5 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd5 Drilldown into QuotationCharacteristics in schema fpml-asset-5-10_xsd5XSD Diagram of quotationCharacteristics in schema fpml-asset-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="quotationCharacteristics" type="QuotationCharacteristics" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows information about how the price was quoted to be provided.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
measureType nsF:measureType 0 (1)
quoteUnits nsF:quoteUnits 0 (1)
side nsF:side 0 (1)
currency nsF:currency 0 (1)
currencyType nsF:currencyType 0 (1)
timing nsF:timing 0 (1)
businessCenter nsF:businessCenter (1) (1)
exchangeId nsF:exchangeId (1) (1)
informationSource nsF:informationSource 0 unbounded
pricingModel nsF:pricingModel 0 (1)
time nsF:time 0 (1)
valuationDate nsF:valuationDate 0 (1)
expiryTime nsF:expiryTime 0 (1)
cashflowType nsF:cashflowType 0 (1)
<xs:group> nsF:QuotationCharacteristics.model (1) (1)
<xs:group> nsF:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
