Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: QuotationCharacteristics
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-asset-5-10.xsd
Abstract
Documentation:
A type representing a set of characteristics that describe a quotation.

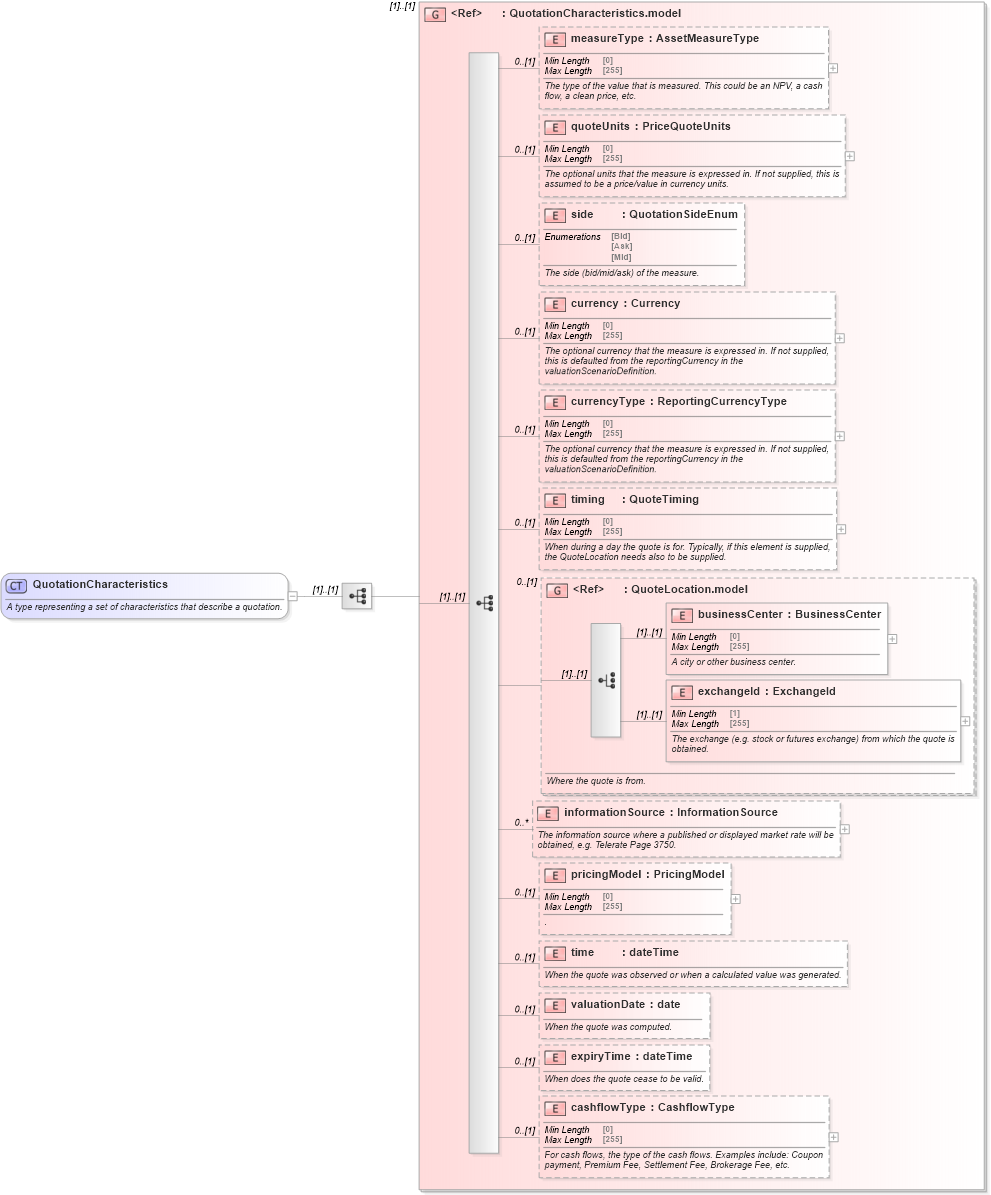

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd5 Drilldown into expiryTime in schema fpml-asset-5-10_xsd5 Drilldown into valuationDate in schema fpml-asset-5-10_xsd5 Drilldown into time in schema fpml-asset-5-10_xsd5 Drilldown into pricingModel in schema fpml-asset-5-10_xsd5 Drilldown into informationSource in schema fpml-asset-5-10_xsd5 Drilldown into exchangeId in schema fpml-asset-5-10_xsd5 Drilldown into businessCenter in schema fpml-asset-5-10_xsd5 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd5 Drilldown into timing in schema fpml-asset-5-10_xsd5 Drilldown into currencyType in schema fpml-asset-5-10_xsd5 Drilldown into currency in schema fpml-asset-5-10_xsd5 Drilldown into side in schema fpml-asset-5-10_xsd5 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd5 Drilldown into measureType in schema fpml-asset-5-10_xsd5 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd5XSD Diagram of QuotationCharacteristics in schema fpml-asset-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="QuotationCharacteristics">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type representing a set of characteristics that describe a quotation.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="QuotationCharacteristics.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
measureType nsF:measureType 0 (1)
quoteUnits nsF:quoteUnits 0 (1)
side nsF:side 0 (1)
currency nsF:currency 0 (1)
currencyType nsF:currencyType 0 (1)
timing nsF:timing 0 (1)
businessCenter nsF:businessCenter (1) (1)
exchangeId nsF:exchangeId (1) (1)
informationSource nsF:informationSource 0 unbounded
pricingModel nsF:pricingModel 0 (1)
time nsF:time 0 (1)
valuationDate nsF:valuationDate 0 (1)
expiryTime nsF:expiryTime 0 (1)
cashflowType nsF:cashflowType 0 (1)
<xs:group> nsF:QuotationCharacteristics.model (1) (1)
<xs:group> nsF:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:quotationCharacteristics
