Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestCollateralAllocation
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CorrectableRequestMessage
Containing Schema: fpml-confirmation-processes-5-10.xsd
Abstract

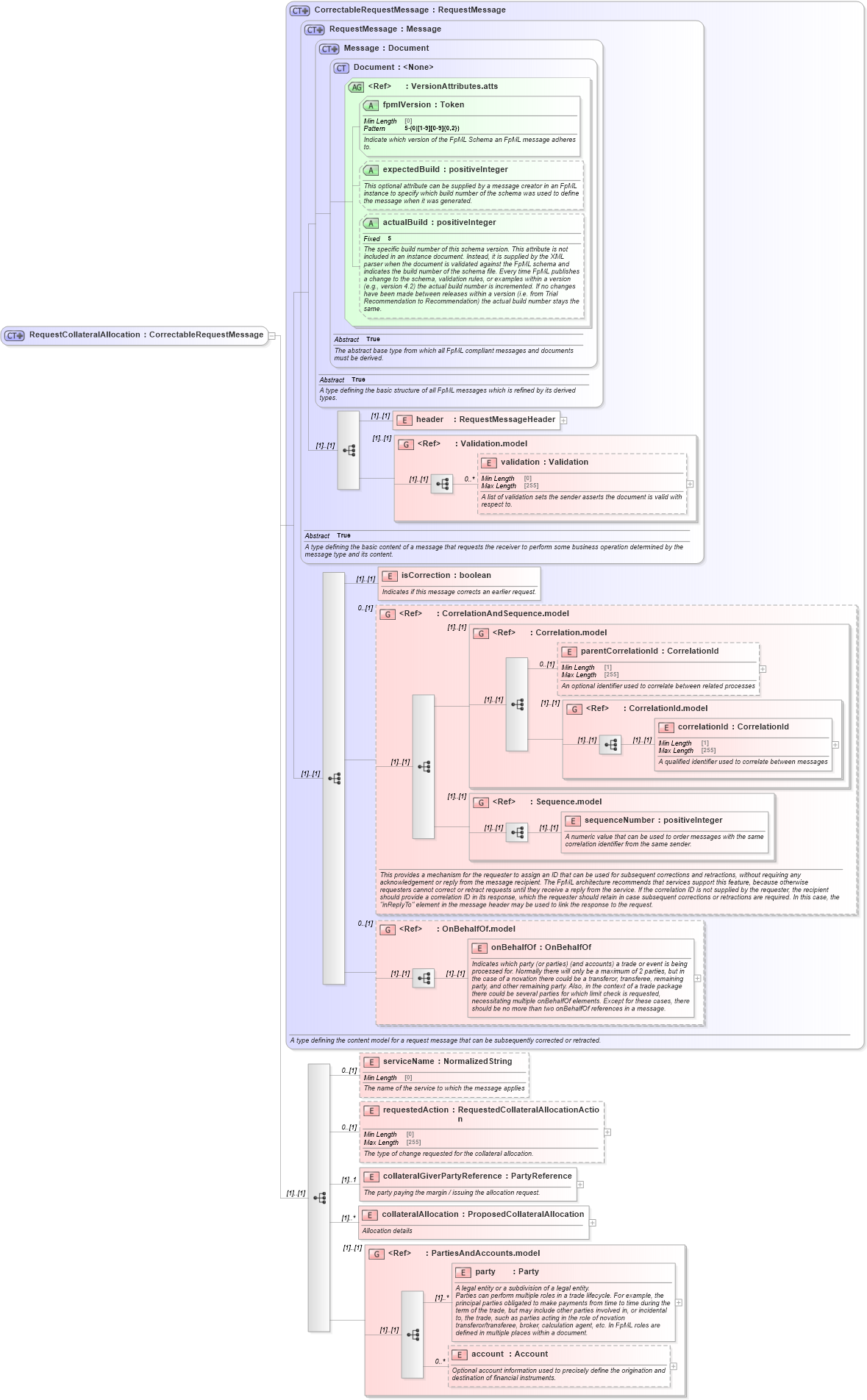

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-10_xsd Drilldown into party in schema fpml-shared-5-10_xsd Drilldown into PartiesAndAccounts.model in schema fpml-shared-5-10_xsd Drilldown into collateralAllocation in schema fpml-confirmation-processes-5-10_xsd Drilldown into collateralGiverPartyReference in schema fpml-confirmation-processes-5-10_xsd Drilldown into requestedAction in schema fpml-confirmation-processes-5-10_xsd Drilldown into serviceName in schema fpml-confirmation-processes-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd Drilldown into OnBehalfOf.model in schema fpml-shared-5-10_xsd Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd Drilldown into Sequence.model in schema fpml-msg-5-10_xsd Drilldown into correlationId in schema fpml-msg-5-10_xsd Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd Drilldown into Correlation.model in schema fpml-msg-5-10_xsd Drilldown into CorrelationAndSequence.model in schema fpml-msg-5-10_xsd Drilldown into isCorrection in schema fpml-msg-5-10_xsd Drilldown into validation in schema fpml-doc-5-10_xsd Drilldown into Validation.model in schema fpml-doc-5-10_xsd Drilldown into header in schema fpml-msg-5-10_xsd Drilldown into actualBuild in schema fpml-doc-5-10_xsd Drilldown into expectedBuild in schema fpml-doc-5-10_xsd Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd Drilldown into Document in schema fpml-doc-5-10_xsd Drilldown into Message in schema fpml-msg-5-10_xsd Drilldown into RequestMessage in schema fpml-msg-5-10_xsd Drilldown into CorrectableRequestMessage in schema fpml-msg-5-10_xsdXSD Diagram of RequestCollateralAllocation in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestCollateralAllocation">
    <xsd:complexContent>
        <xsd:extension base="CorrectableRequestMessage">
            <xsd:sequence>
                <xsd:element name="serviceName" type="NormalizedString" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The name of the service to which the message applies</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="requestedAction" type="RequestedCollateralAllocationAction" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The type of change requested for the collateral allocation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="collateralGiverPartyReference" type="PartyReference" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The party paying the margin / issuing the allocation request.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="collateralAllocation" type="ProposedCollateralAllocation" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Allocation details</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="PartiesAndAccounts.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
isCorrection nsA:isCorrection (1) (1)
parentCorrelationId nsA:parentCorrelationId 0 (1)
correlationId nsA:correlationId (1) (1)
sequenceNumber nsA:sequenceNumber (1) (1)
onBehalfOf nsA:onBehalfOf (1) (1)
serviceName nsA:serviceName 0 (1)
requestedAction nsA:requestedAction 0 (1)
collateralGiverPartyReference nsA:collateralGiverPartyReference (1) 1
collateralAllocation nsA:collateralAllocation (1) unbounded
party nsA:party (1) unbounded
account nsA:account 0 unbounded
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:CorrelationAndSequence.model 0 (1)
<xs:group> nsA:Correlation.model (1) (1)
<xs:group> nsA:CorrelationId.model (1) (1)
<xs:group> nsA:Sequence.model (1) (1)
<xs:group> nsA:OnBehalfOf.model 0 (1)
<xs:group> nsA:PartiesAndAccounts.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsA:fpmlVersion Required
expectedBuild nsA:expectedBuild (Optional)
actualBuild nsA:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:requestCollateralAllocation
