Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestLimitCheck
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:CorrectableRequestMessage2
Containing Schema: fpml-pretrade-processes-5-10.xsd
Abstract

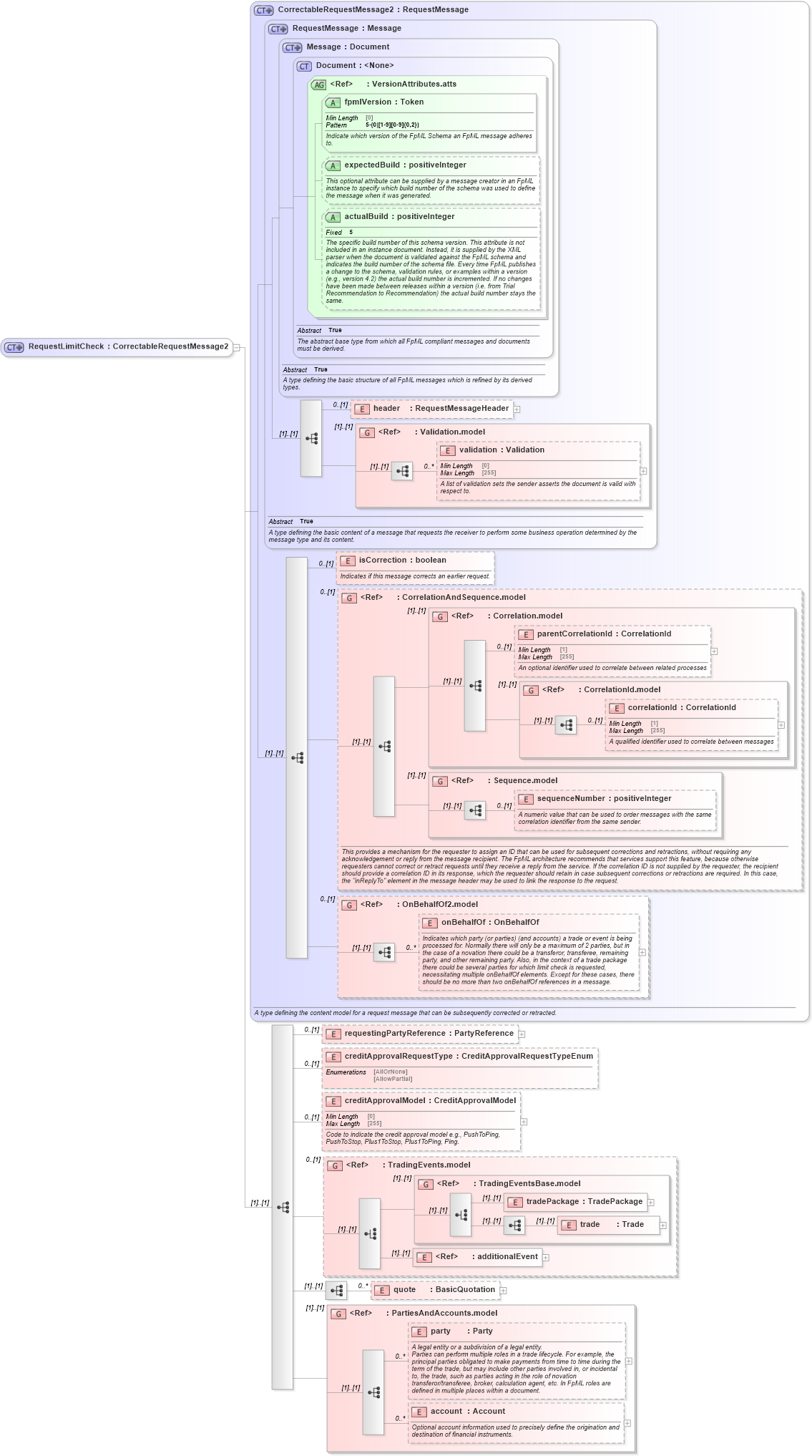

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-10_xsd2 Drilldown into party in schema fpml-shared-5-10_xsd2 Drilldown into PartiesAndAccounts.model in schema fpml-shared-5-10_xsd2 Drilldown into quote in schema fpml-pretrade-processes-5-10_xsd Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd1 Drilldown into trade in schema fpml-business-events-5-10_xsd1 Drilldown into tradePackage in schema fpml-business-events-5-10_xsd1 Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd1 Drilldown into TradingEvents.model in schema fpml-business-events-5-10_xsd1 Drilldown into creditApprovalModel in schema fpml-pretrade-processes-5-10_xsd Drilldown into creditApprovalRequestType in schema fpml-pretrade-processes-5-10_xsd Drilldown into requestingPartyReference in schema fpml-pretrade-processes-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd2 Drilldown into OnBehalfOf2.model in schema fpml-shared-5-10_xsd2 Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd1 Drilldown into Sequence.model in schema fpml-msg-5-10_xsd1 Drilldown into correlationId in schema fpml-msg-5-10_xsd1 Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd1 Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd1 Drilldown into Correlation.model in schema fpml-msg-5-10_xsd1 Drilldown into CorrelationAndSequence.model in schema fpml-msg-5-10_xsd1 Drilldown into isCorrection in schema fpml-msg-5-10_xsd1 Drilldown into validation in schema fpml-doc-5-10_xsd2 Drilldown into Validation.model in schema fpml-doc-5-10_xsd2 Drilldown into header in schema fpml-msg-5-10_xsd1 Drilldown into actualBuild in schema fpml-doc-5-10_xsd2 Drilldown into expectedBuild in schema fpml-doc-5-10_xsd2 Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd2 Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd2 Drilldown into Document in schema fpml-doc-5-10_xsd2 Drilldown into Message in schema fpml-msg-5-10_xsd1 Drilldown into RequestMessage in schema fpml-msg-5-10_xsd1 Drilldown into CorrectableRequestMessage2 in schema fpml-msg-5-10_xsd1XSD Diagram of RequestLimitCheck in schema fpml-pretrade-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestLimitCheck">
    <xsd:complexContent>
        <xsd:extension base="CorrectableRequestMessage2">
            <xsd:sequence>
                <xsd:element name="requestingPartyReference" type="PartyReference" minOccurs="0" fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Deprecated in favor of existing onBehalfOf element." xmlns:fpml-annotation="http://www.fpml.org/annotation" />
                <xsd:element name="creditApprovalRequestType" type="CreditApprovalRequestTypeEnum" minOccurs="0" />
                <xsd:element name="creditApprovalModel" type="CreditApprovalModel" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Code to indicate the credit approval model e.g., PushToPing, PushToStop, Plus1ToStop, Plus1ToPing, Ping.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="TradingEvents.model" minOccurs="0" />
                <xsd:sequence>
                    <xsd:element name="quote" type="BasicQuotation" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
                <xsd:group ref="PartiesAndAccounts.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsC:header 0 (1)
validation nsC:validation 0 unbounded
isCorrection nsC:isCorrection 0 (1)
parentCorrelationId nsC:parentCorrelationId 0 (1)
correlationId nsC:correlationId 0 (1)
sequenceNumber nsC:sequenceNumber 0 (1)
onBehalfOf nsC:onBehalfOf 0 unbounded
requestingPartyReference nsC:requestingPartyReference 0 (1)
creditApprovalRequestType nsC:creditApprovalRequestType 0 (1)
creditApprovalModel nsC:creditApprovalModel 0 (1)
tradePackage nsC:tradePackage (1) (1)
trade nsC:trade (1) (1)
additionalEvent nsC:additionalEvent (1) (1)
quote nsC:quote 0 unbounded
party nsC:party 0 unbounded
account nsC:account 0 unbounded
<xs:group> nsC:Validation.model (1) (1)
<xs:group> nsC:CorrelationAndSequence.model 0 (1)
<xs:group> nsC:Correlation.model (1) (1)
<xs:group> nsC:CorrelationId.model (1) (1)
<xs:group> nsC:Sequence.model (1) (1)
<xs:group> nsC:OnBehalfOf2.model 0 (1)
<xs:group> nsC:TradingEvents.model 0 (1)
<xs:group> nsC:TradingEventsBase.model (1) (1)
<xs:group> nsC:PartiesAndAccounts.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsC:fpmlVersion Required
expectedBuild nsC:expectedBuild (Optional)
actualBuild nsC:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:requestLimitCheck
