Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: sensitivitySetDefinition
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:SensitivitySetDefinition
Containing Schema: fpml-valuation-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Definition(s) of sensitivity sets used (requested or reported) in this valuation set.

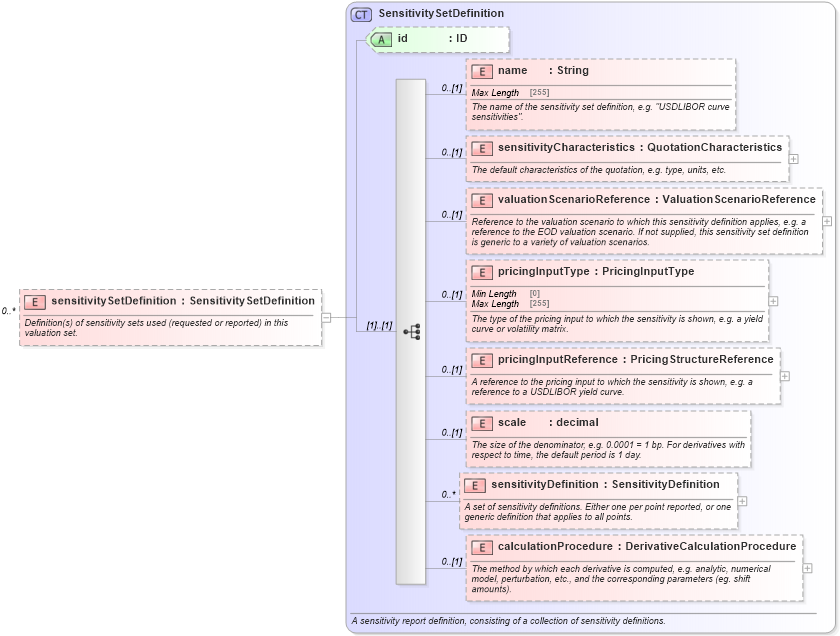

Collapse XSD Schema Diagram:
Drilldown into calculationProcedure in schema fpml-riskdef-5-10_xsd2 Drilldown into sensitivityDefinition in schema fpml-riskdef-5-10_xsd2 Drilldown into scale in schema fpml-riskdef-5-10_xsd2 Drilldown into pricingInputReference in schema fpml-riskdef-5-10_xsd2 Drilldown into pricingInputType in schema fpml-riskdef-5-10_xsd2 Drilldown into valuationScenarioReference in schema fpml-riskdef-5-10_xsd2 Drilldown into sensitivityCharacteristics in schema fpml-riskdef-5-10_xsd2 Drilldown into name in schema fpml-riskdef-5-10_xsd2 Drilldown into id in schema fpml-riskdef-5-10_xsd2 Drilldown into SensitivitySetDefinition in schema fpml-riskdef-5-10_xsd2XSD Diagram of sensitivitySetDefinition in schema fpml-valuation-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="sensitivitySetDefinition" type="SensitivitySetDefinition" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Definition(s) of sensitivity sets used (requested or reported) in this valuation set.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsE:name 0 (1)
sensitivityCharacteristics nsE:sensitivityCharacteristics 0 (1)
valuationScenarioReference nsE:valuationScenarioReference 0 (1)
pricingInputType nsE:pricingInputType 0 (1)
pricingInputReference nsE:pricingInputReference 0 (1)
scale nsE:scale 0 (1)
sensitivityDefinition nsE:sensitivityDefinition 0 unbounded
calculationProcedure nsE:calculationProcedure 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
