Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: straddle
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxStraddle
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
details of the straddle (underlying options).

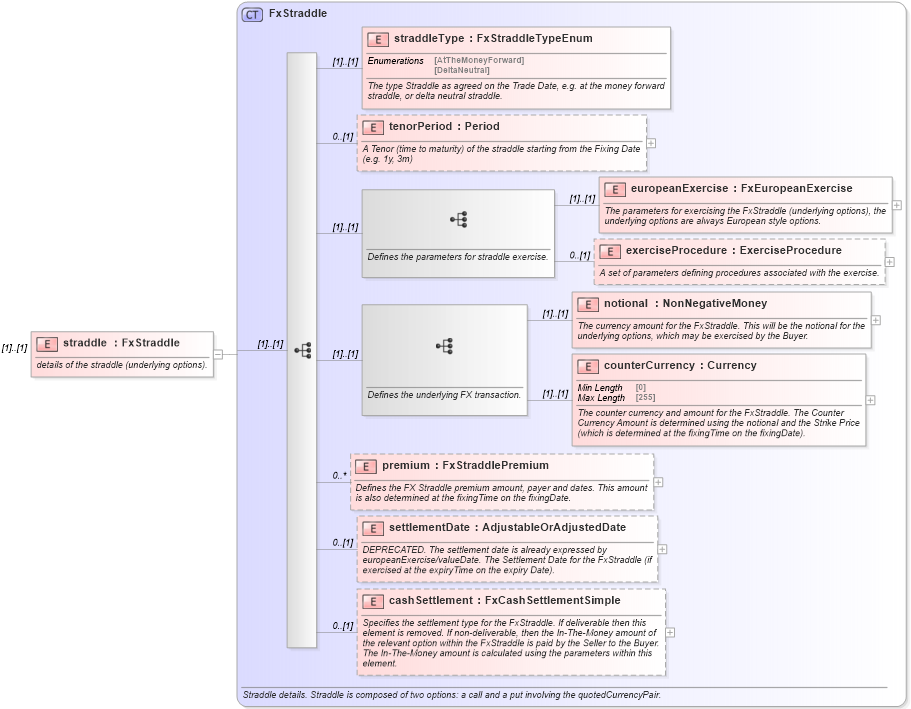

Collapse XSD Schema Diagram:
Drilldown into cashSettlement in schema fpml-fx-5-10_xsd Drilldown into settlementDate in schema fpml-fx-5-10_xsd Drilldown into premium in schema fpml-fx-5-10_xsd Drilldown into counterCurrency in schema fpml-fx-5-10_xsd Drilldown into notional in schema fpml-fx-5-10_xsd Drilldown into exerciseProcedure in schema fpml-fx-5-10_xsd Drilldown into europeanExercise in schema fpml-fx-5-10_xsd Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd Drilldown into straddleType in schema fpml-fx-5-10_xsd Drilldown into FxStraddle in schema fpml-fx-5-10_xsdXSD Diagram of straddle in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="straddle" type="FxStraddle">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">details of the straddle (underlying options).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
straddleType nsA:straddleType (1) (1)
tenorPeriod nsA:tenorPeriod 0 (1)
europeanExercise nsA:europeanExercise (1) (1)
exerciseProcedure nsA:exerciseProcedure 0 (1)
notional nsA:notional (1) (1)
counterCurrency nsA:counterCurrency (1) (1)
premium nsA:premium 0 unbounded
settlementDate nsA:settlementDate 0 (1)
cashSettlement nsA:cashSettlement 0 (1)
Collapse Derivation Tree:
