Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: straddle
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxStraddle
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
details of the straddle (underlying options).

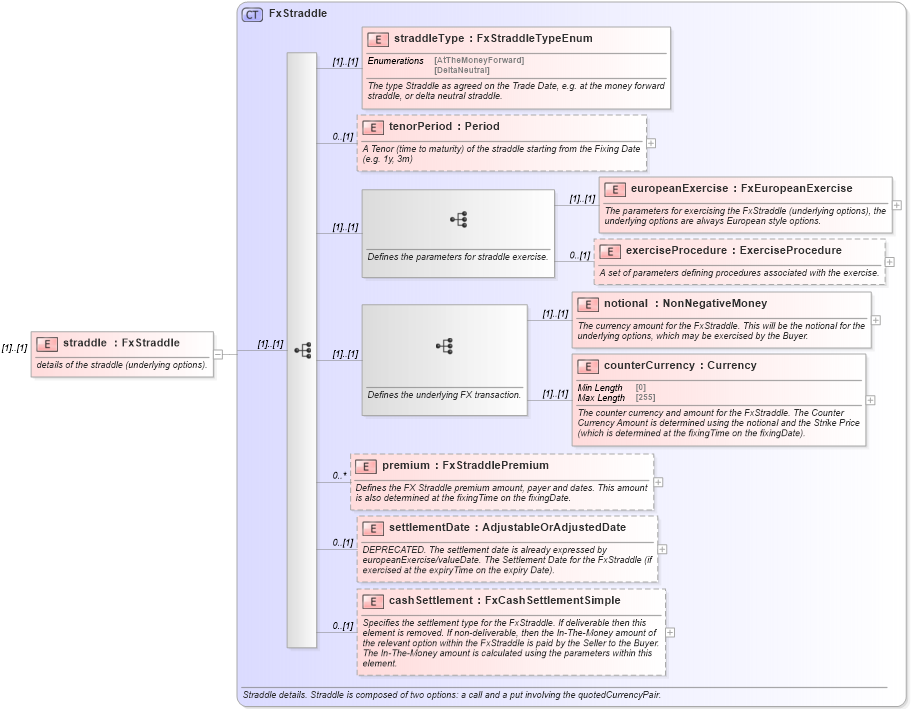

Collapse XSD Schema Diagram:
Drilldown into cashSettlement in schema fpml-fx-5-10_xsd2 Drilldown into settlementDate in schema fpml-fx-5-10_xsd2 Drilldown into premium in schema fpml-fx-5-10_xsd2 Drilldown into counterCurrency in schema fpml-fx-5-10_xsd2 Drilldown into notional in schema fpml-fx-5-10_xsd2 Drilldown into exerciseProcedure in schema fpml-fx-5-10_xsd2 Drilldown into europeanExercise in schema fpml-fx-5-10_xsd2 Drilldown into tenorPeriod in schema fpml-fx-5-10_xsd2 Drilldown into straddleType in schema fpml-fx-5-10_xsd2 Drilldown into FxStraddle in schema fpml-fx-5-10_xsd2XSD Diagram of straddle in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="straddle" type="FxStraddle">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">details of the straddle (underlying options).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
straddleType nsD:straddleType (1) (1)
tenorPeriod nsD:tenorPeriod 0 (1)
europeanExercise nsD:europeanExercise (1) (1)
exerciseProcedure nsD:exerciseProcedure 0 (1)
notional nsD:notional (1) (1)
counterCurrency nsD:counterCurrency (1) (1)
premium nsD:premium 0 unbounded
settlementDate nsD:settlementDate 0 (1)
cashSettlement nsD:cashSettlement 0 (1)
Collapse Derivation Tree:
