Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: swapStream
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:InterestRateStream
Containing Schema: fpml-ird-5-10.xsd
MinOccurs (1)
MaxOccurs 2
Abstract
Documentation:
The swap streams.

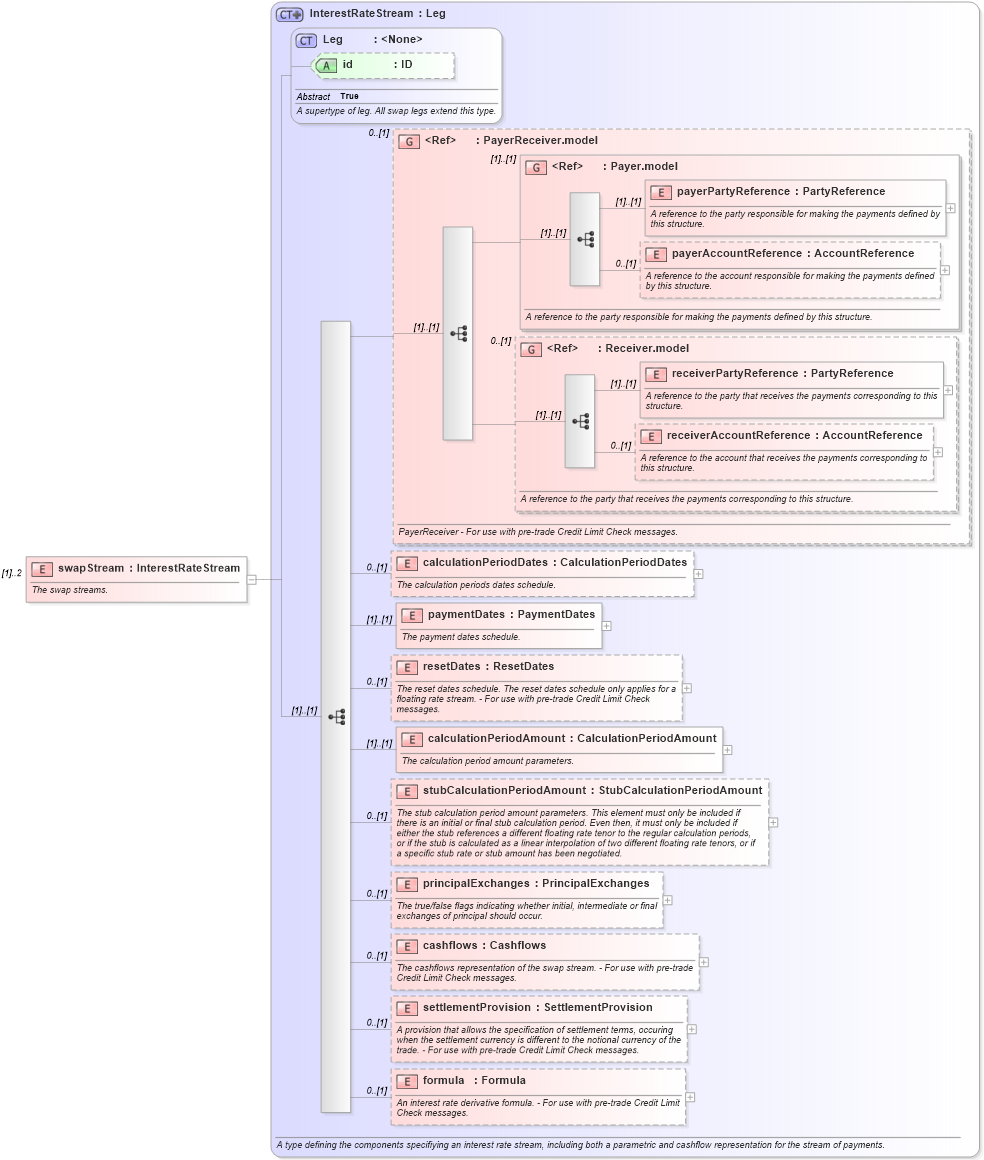

Collapse XSD Schema Diagram:
Drilldown into formula in schema fpml-ird-5-10_xsd1 Drilldown into settlementProvision in schema fpml-ird-5-10_xsd1 Drilldown into cashflows in schema fpml-ird-5-10_xsd1 Drilldown into principalExchanges in schema fpml-ird-5-10_xsd1 Drilldown into stubCalculationPeriodAmount in schema fpml-ird-5-10_xsd1 Drilldown into calculationPeriodAmount in schema fpml-ird-5-10_xsd1 Drilldown into resetDates in schema fpml-ird-5-10_xsd1 Drilldown into paymentDates in schema fpml-ird-5-10_xsd1 Drilldown into calculationPeriodDates in schema fpml-ird-5-10_xsd1 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd2 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd2 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd2 Drilldown into Payer.model in schema fpml-shared-5-10_xsd2 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd2 Drilldown into Leg in schema fpml-shared-5-10_xsd2 Drilldown into InterestRateStream in schema fpml-ird-5-10_xsd1XSD Diagram of swapStream in schema fpml-ird-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="swapStream" type="InterestRateStream" maxOccurs="2">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The swap streams.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsC:payerPartyReference (1) (1)
payerAccountReference nsC:payerAccountReference 0 (1)
receiverPartyReference nsC:receiverPartyReference (1) (1)
receiverAccountReference nsC:receiverAccountReference 0 (1)
calculationPeriodDates nsC:calculationPeriodDates 0 (1)
paymentDates nsC:paymentDates (1) (1)
resetDates nsC:resetDates 0 (1)
calculationPeriodAmount nsC:calculationPeriodAmount (1) (1)
stubCalculationPeriodAmount nsC:stubCalculationPeriodAmount 0 (1)
principalExchanges nsC:principalExchanges 0 (1)
cashflows nsC:cashflows 0 (1)
settlementProvision nsC:settlementProvision 0 (1)
formula nsC:formula 0 (1)
<xs:group> nsC:PayerReceiver.model 0 (1)
<xs:group> nsC:Payer.model (1) (1)
<xs:group> nsC:Receiver.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
