Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: TradeLegSizeChange
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-business-events-5-10.xsd
Abstract
Documentation:
A structure describing a change to the size of a single leg or stream of a trade.

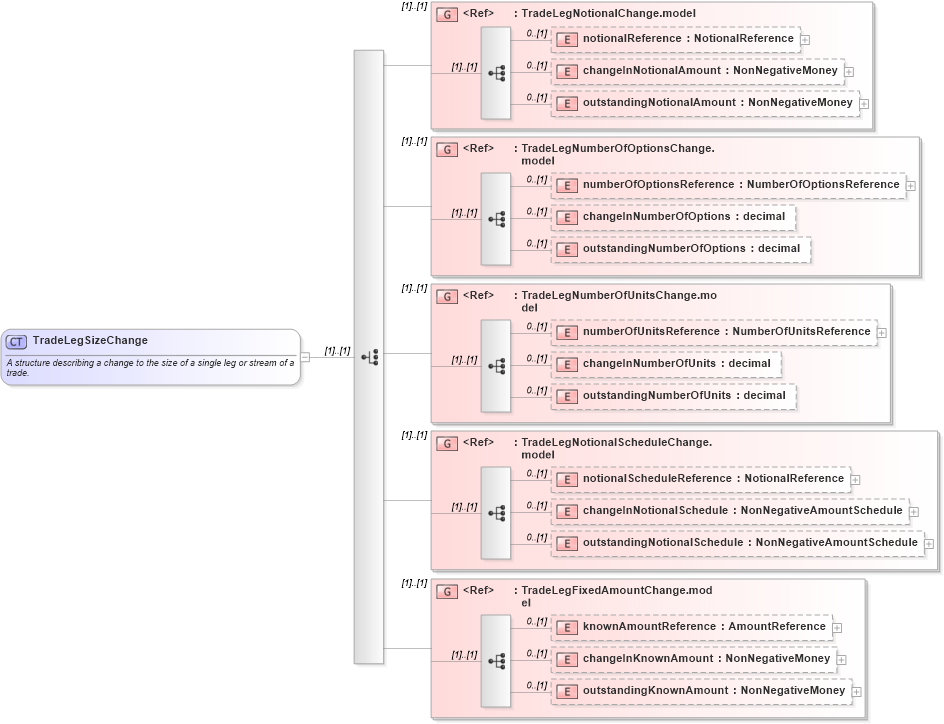

Collapse XSD Schema Diagram:
Drilldown into outstandingKnownAmount in schema fpml-business-events-5-10_xsd3 Drilldown into changeInKnownAmount in schema fpml-business-events-5-10_xsd3 Drilldown into knownAmountReference in schema fpml-business-events-5-10_xsd3 Drilldown into TradeLegFixedAmountChange.model in schema fpml-business-events-5-10_xsd3 Drilldown into outstandingNotionalSchedule in schema fpml-business-events-5-10_xsd3 Drilldown into changeInNotionalSchedule in schema fpml-business-events-5-10_xsd3 Drilldown into notionalScheduleReference in schema fpml-business-events-5-10_xsd3 Drilldown into TradeLegNotionalScheduleChange.model in schema fpml-business-events-5-10_xsd3 Drilldown into outstandingNumberOfUnits in schema fpml-business-events-5-10_xsd3 Drilldown into changeInNumberOfUnits in schema fpml-business-events-5-10_xsd3 Drilldown into numberOfUnitsReference in schema fpml-business-events-5-10_xsd3 Drilldown into TradeLegNumberOfUnitsChange.model in schema fpml-business-events-5-10_xsd3 Drilldown into outstandingNumberOfOptions in schema fpml-business-events-5-10_xsd3 Drilldown into changeInNumberOfOptions in schema fpml-business-events-5-10_xsd3 Drilldown into numberOfOptionsReference in schema fpml-business-events-5-10_xsd3 Drilldown into TradeLegNumberOfOptionsChange.model in schema fpml-business-events-5-10_xsd3 Drilldown into outstandingNotionalAmount in schema fpml-business-events-5-10_xsd3 Drilldown into changeInNotionalAmount in schema fpml-business-events-5-10_xsd3 Drilldown into notionalReference in schema fpml-business-events-5-10_xsd3 Drilldown into TradeLegNotionalChange.model in schema fpml-business-events-5-10_xsd3XSD Diagram of TradeLegSizeChange in schema fpml-business-events-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TradeLegSizeChange">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure describing a change to the size of a single leg or stream of a trade.</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="TradeLegNotionalChange.model" />
        <xsd:group ref="TradeLegNumberOfOptionsChange.model" />
        <xsd:group ref="TradeLegNumberOfUnitsChange.model" />
        <xsd:group ref="TradeLegNotionalScheduleChange.model" />
        <xsd:group ref="TradeLegFixedAmountChange.model" />
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalReference nsE:notionalReference 0 (1)
changeInNotionalAmount nsE:changeInNotionalAmount 0 (1)
outstandingNotionalAmount nsE:outstandingNotionalAmount 0 (1)
numberOfOptionsReference nsE:numberOfOptionsReference 0 (1)
changeInNumberOfOptions nsE:changeInNumberOfOptions 0 (1)
outstandingNumberOfOptions nsE:outstandingNumberOfOptions 0 (1)
numberOfUnitsReference nsE:numberOfUnitsReference 0 (1)
changeInNumberOfUnits nsE:changeInNumberOfUnits 0 (1)
outstandingNumberOfUnits nsE:outstandingNumberOfUnits 0 (1)
notionalScheduleReference nsE:notionalScheduleReference 0 (1)
changeInNotionalSchedule nsE:changeInNotionalSchedule 0 (1)
outstandingNotionalSchedule nsE:outstandingNotionalSchedule 0 (1)
knownAmountReference nsE:knownAmountReference 0 (1)
changeInKnownAmount nsE:changeInKnownAmount 0 (1)
outstandingKnownAmount nsE:outstandingKnownAmount 0 (1)
<xs:group> nsE:TradeLegNotionalChange.model (1) (1)
<xs:group> nsE:TradeLegNumberOfOptionsChange.model (1) (1)
<xs:group> nsE:TradeLegNumberOfUnitsChange.model (1) (1)
<xs:group> nsE:TradeLegNotionalScheduleChange.model (1) (1)
<xs:group> nsE:TradeLegFixedAmountChange.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsE:novationAmountnsE:sizeChange,
