Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: TriggerRateObservation
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-business-events-5-10.xsd
Abstract

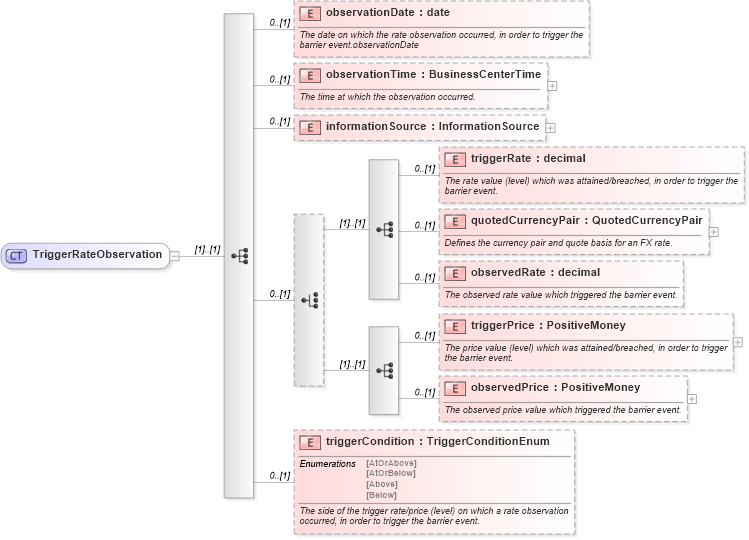

Collapse XSD Schema Diagram:
Drilldown into triggerCondition in schema fpml-business-events-5-10_xsd2 Drilldown into observedPrice in schema fpml-business-events-5-10_xsd2 Drilldown into triggerPrice in schema fpml-business-events-5-10_xsd2 Drilldown into observedRate in schema fpml-business-events-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-business-events-5-10_xsd2 Drilldown into triggerRate in schema fpml-business-events-5-10_xsd2 Drilldown into informationSource in schema fpml-business-events-5-10_xsd2 Drilldown into observationTime in schema fpml-business-events-5-10_xsd2 Drilldown into observationDate in schema fpml-business-events-5-10_xsd2XSD Diagram of TriggerRateObservation in schema fpml-business-events-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TriggerRateObservation">
    <xsd:sequence>
        <xsd:element name="observationDate" type="xsd:date" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date on which the rate observation occurred, in order to trigger the barrier event.observationDate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="observationTime" type="BusinessCenterTime" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The time at which the observation occurred.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="informationSource" type="InformationSource" minOccurs="0" />
        <xsd:choice minOccurs="0">
            <xsd:sequence>
                <xsd:element name="triggerRate" type="xsd:decimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The rate value (level) which was attained/breached, in order to trigger the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Defines the currency pair and quote basis for an FX rate.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="observedRate" type="xsd:decimal" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The observed rate value which triggered the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:sequence>
                <xsd:element name="triggerPrice" type="PositiveMoney" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The price value (level) which was attained/breached, in order to trigger the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="observedPrice" type="PositiveMoney" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The observed price value which triggered the barrier event.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:choice>
        <xsd:element name="triggerCondition" type="TriggerConditionEnum" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The side of the trigger rate/price (level) on which a rate observation occurred, in order to trigger the barrier event.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
observationDate nsD:observationDate 0 (1)
observationTime nsD:observationTime 0 (1)
informationSource nsD:informationSource 0 (1)
triggerRate nsD:triggerRate 0 (1)
quotedCurrencyPair nsD:quotedCurrencyPair 0 (1)
observedRate nsD:observedRate 0 (1)
triggerPrice nsD:triggerPrice 0 (1)
observedPrice nsD:observedPrice 0 (1)
triggerCondition nsD:triggerCondition 0 (1)
Collapse Derivation Tree:
Collapse References:
nsD:knockIn, nsD:KnockOutRateObservation, nsD:TouchRateObservation
